GPOE-6P

PCI Express Power over Ethernet card, 6-port 1000 Base(T), 802.3at / bt compliant, RoHS

End of Life

IEI GPOE-6P add-on card

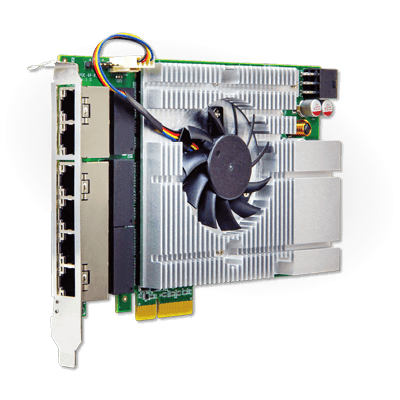

IEI GPOE-6P Expansion Module Card
  • IEI GPOE-6P add-on card
  • IEI GPOE-6P Expansion Module Card

End of Life Notice

* Effective Date: 2024/07/23

» Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
» Total 180 Watts power budget with maximum 90 Watts per port
» PoE power sourced from 12~24VDC of ATX power
» Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
» Supports SW/RDK (IEI GPOE Management Software Tools)
» Compatible with x4, x8 and x16 PCIe slots
» IEEE 802.3at/bt PoE compliant

Overview


IEI releases the new product of GPOE series – GPOE-6P-R10. Compare with GPOE-2P and GPOE-4P, GPOE-6P-R10 has more ports to connect with more devices. By using GPOE-6P-R10, customers could use in different application such as PoE IP camera, VoIP phone, wireless AP, security gate, access control and PoE panel pc.

Providing 6 PoE ports with one slot capacity and only 21.59mm wide, GPOE-6P-R10 support total 180 watts power budget and has its own individual cooler heatsink with fan. Moreover, IEI provide GPOE Management Software Tools to control each PoE ports.

photo description

1

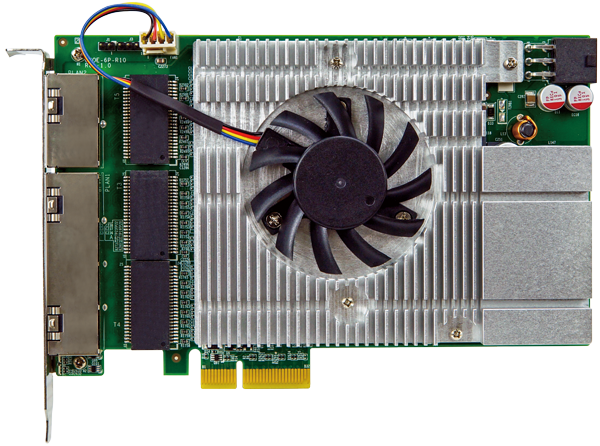

Including 6 PoE port

3

PCIe x4/x8/x16 flexible slot compatibility

2

Including 6 Intel® LAN chips

4

Power connector 2x3 pin

IEI GPOE Management Software


photo description

Providing 6 PoE ports with one slot capacity and only 21.59mm wide, GPOE-6P-R10 support total 180 watts power budget and has its own individual cooler heatsink with fan. Moreover, IEI provide GPOE Management Software Tools to control each PoE ports.

Support Multiple GPOE Cards


IEI GPOE-6P includes cooler heatsink with fan and only with one slot capacity. Mostly the embedded system will not only insert one GPOE card, IEI GPOE-6P provides two LED light and management software tools to clarify the function for each cards and ports. IEI GPOE management software tools could control the power and monitor the speed and process of data transfer through LAN. Moreover, the software tools could also a llocate the power of total 180 watts.

LED

Board ID

Card 1 Card 2 Card 3 Card 4 Card 5 Card 6 Card 7 Card 8

Dimensions


photo description

Hardware Spec.

System
Cooling method / System Fan One 1x4 pin fan
Physical Characteristics
Dimensions (LxWxH) (mm) 169.44 mm x 106.65 mm
Net Weight 286g
I/O Interface
Ethernet Description: 6 x Intel® i211AT controller, 9kB jumbo frame
- PoE Capability -
IEEE 802.3at with 30W / 52V per port
IEEE 802.3bt with 90W / 52V per port
(Support for total 180 watts under full load)
Power
Input 12~24V DC input
1 x Internal DC input (2x3 pin)
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant
Card Slot Interface
PCIe PCI Express® x4

Ordering Information

GPOE-6P-R10 PCI Express Power over ethernet card, 6-port 1000 Base(T), 802.3at/bt compliant, RoHS

Package Contents

Package Content
  • 1 x GPOE-6P card with cooler

  • 1 x QIG (Quick Installation Guide)
