End of Life Notice
* Effective Date: 2023/10/20
Fanless and Palm-size Digital Signage Platform

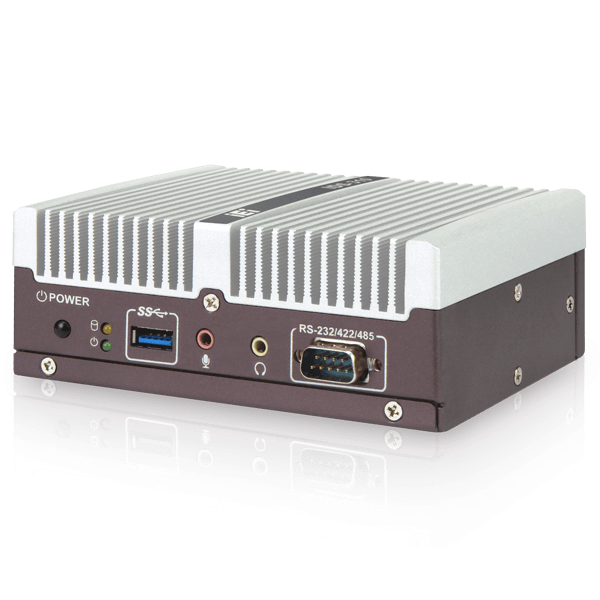

The IDS-310-AL is a fanless, compact-size digital signage system with Intel® Celeron® series processor. It could be installed in applications with limited space, and can avoid dust easily. It features triple HDMI™ ports to support 4K resolution for displaying independent content, like advertising promotion, restaurant menu or real-time traffic information. The IDS-310-AL also supports multiple I/O ports, including two LAN ports, three USB 3.2 Gen 1 ports, audio jacks and COM port. No doubt it has high flexibility; the IDS-310-AL reserves one M.2 A-key slot for Wi-Fi and Bluetooth module, and one full-size PCIe Mini slot for mSATA, I/O cards or 3G/4G modules. Moreover, optional module layer design is supported for extra 2.5" HDD storage expansion. This system can be your best choice for digital signage applications.
Dual CPU SKU for Different Requirement
The IDS-310 series has two SKUs, one is integrated with a dual-core CPU, Intel® Celeron® N3350, and one with a quad-core CPU, Intel® Celeron® J3455, to offer different computing performance for various requirements. Both of the platforms support wide range operating temperature from -20°C to 60°C , and adopt same hardware design to reduce product verification time and time-to-market.
Small but Complete in Every Detail
The IDS-310 features three independent HDMI™ display ports supporting up to 4K resolution, and its palm-size design allows it to be installed in an extremely limited space. It supports two LAN ports for advanced management, network security or surveillance. Moreover, three USB 3.2 ports and COM ports enable connection to a wide range of peripherals like RFID payment system, barcode reader, credit card reader or receipt printer. The IDS-310 also provides one M.2 A-key slot for Wi-Fi and Bluetooth modules, and one full-size PCIe Mini slot for 3G/4G modules.
Modular Design for High Expansion
The IDS-310 supports SATADOM as a basic storage option. For requirements of larger storage capacity, its modular design offers dual-layer chassis to contain a 2.5" HDD for more flexible HDD/S SD selection.
Advanced Multi-Display Digital Signage
Advanced multi-display digital signage can make people easily and quickly get the information they need. The IDS-310 is designed with small form factor, allowing it to be installed in narrow spaces, such as the wall or ceiling of an aisle. With its rich I/O design, it can be connected with different devices to offer various functions, such as payment system, IP camera, card readers and so on. Furthermore, people counting and video promotion display can be set up with IP camera via USB or LAN ports to deliver information in real-time, and it can also maintain service quality and safety of customers to avoid unnecessary injuries. Enterprises can not only monitor the live images of specific entrances and exits, but use these data to analyze consumer activities daily, weekly, monthly or within certain periods, as a reference for operation management.
|SBC Form Factor
1 x 2230 A key (PCIe x1/ USB 2.0)
1 x Full-size (PCIe/ USB 2.0/ SATA) with SIM card slot
|Cooling method / System Fan
1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
|Extruded aluminum alloy
|Brown & Silver
J1: 137 x 102.8 x 52.1 mm
N1:137 x 102.8 x 38.1 mm
|-20°C ~ 60°C with air flow (mSATA)
|10% ~ 95%, non-condensing
|Fanless embedded system with Intel® Celeron® N3350 1.1GHz (up to 2.4GHz, dual dore, TDP 6W), pre-installed 4GB DDR3L memory, triple HDMI™ display, 12V DC and RoHS
|Fanless embedded system with Intel® Celeron® J3455 1.5GHz (up to 2.3GHz, quad dore, TDP 10W), pre-installed 4GB DDR3L memory, triple HDMI™ display, 12V DC and RoHS
