End of Life Notice
* Effective Date: 2024/09/06

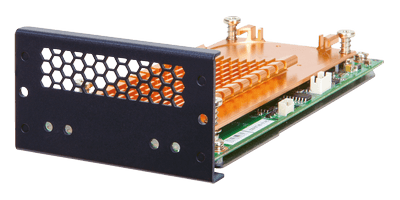

• Supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs
• M.2 SSD temperature is monitored in real time by sensor IC
• 2 PCIe 3.0 x4
• LED indicator shows the M.2 status
• RoHS compliant
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 165.50 (L) x 77.8 (W) x 44.2 (H) |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) |
| Humidity | 5% ~ 90% RH, Non-condensing |
| Certifications | |
|---|---|
| Safety & EMC | RoHS |
| Card Slot Interface | |
|---|---|
| M.2 | 2 x M key 2260/2280/22110 (PCIe 3.0 x4/NVMe) |
