Desktop Network Appliance with Intel® Atom® Processor C3000 Processor support up to 6 x 1 GbE, 2 x 10 GbE & 2 x M.2 slots, 1 x PCIe Mini, 1 x eMMC 32GB

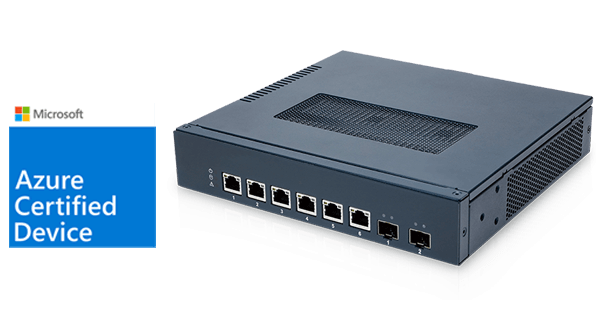

PUZZLE-IN003B compact network firewall appliance for SMB
  • PUZZLE-IN003B compact network firewall appliance for SMB
» Desktop network appliance with Intel® Atom® C3000 processor
» Support 6 x 1 GbE and 2 x 10 GbE SFP+ via X553 integrated in C3558/C3758
» DDR4 2133MHz ECC (by CPU) or non-ECC UDIMM/R-DIMM Up to 128GB
» 1 x M.2 A key (USB 2.0, PCIe x1), 1 x miniPCIe (USB 2.0, PCIe x1) with SIM card slot
» 1 x M.2 M key for PCIe 3.0 x4 nVME, 1 x eMMC 32GB
» Support open source software, such as pfSense® and OPNsense®.

Desktop Network Solution with Low Power and High Transmission Speed

The PUZZLE-IN003B is a desktop network device that can be easily placed in space-limited locations to provide network solution. The PUZZLE-IN003B comes with Intel® Atom® Processor C3000 series SoC which supports up to 128GB dual-channel DDR4 2400 MHz ECC, two 10 GbE Ethernet, and 32GB Embedded Multi Media Card (eMMC).
The PUZZLE-IN003B also provides one M.2 M-key slot for NVME, one M.2 A-key slot, and one PCIe Mini with SIM slot for Wi-Fi, 4G and LTE solutions. It also offers bypass function to ensure uninterrupted data transmission and supports Intel® QuickAssist Technology (Intel® QAT up to 20Gbps) to accelerate and compress cryptographic workloads.

High-Density,Low-Power Designs

High-Density,Low-Power Designs

High-Speed I/O Configurability

High-Speed I/O Configurability

Multi-Core Scalability

Multi-Core Scalability

Integrated Hardware Acceleration

Integrated Hardware Acceleration

Bypass Function Relay Modes

Bypass Function Relay Modes

Intel® Atom® Process C3000

In terms of memory, the PUZZLE-IN003B incorporates double the Layer 2 cache, allowing edge analytics systems to quickly access data. Intel® Atom® Processor C3000 series also supports the Intelligent Storage Acceleration Library (ISA-L), a software library optimized for applications that require high data throughput and minimal latency. And the Intel® VT-c works with the Intel® Ethernet Controller integrated into the new Intel® Atom® processors to deliver I/O virtualization and quality of service (QoS) features.

intel atom icon

Integrated with High Speed 10GbE Interface

The PUZZLE-IN003B equipped with Intel® Atom® C3000-series processor in a small form-factor chassis is designed with two 10GbE ports and six 1GbE ports to provide high-speed connections to the core network while maintaining reliability in a cost-effective manner.

2 x 10 GbE
6 x 1 GBE

Boost Encryption and Compression Performance with Intel® QuickAssist Technology

In 5G network, security is an indispensable requirement. To support increasing security requirements, Intel® Atom® C3000 processor series integrates Intel® QuickAssist Technology that provides up to 20 Gbps of crypto performance, ensuring secure data transfer while reserving valuable processor cycles for other tasks.

IQT icon

Firewall & SD-WAN Application

In the post-pandemic era, the demands of work from home (WFH) and distance learning are increasing dramatically. The desktop network appliance, the PUZZLE-IN003B, is ideal for entry-level UTM, WFH, firewall and VPN solutions. With its Linux tested platform, users can smoothly install any open-source software to meet a variety of network functions, such as firewall and VPN. Moreover, designed with six 1GbE and two 10GbE LAN ports with bypass function, the PUZZLE-IN003B can offer high-speed data transmission and uninterrupted service for you.

Next-Gen Firewall
secure SD-WAN

Hardware Spec.

Form Factor
Form Factor Desktop
CPU Intel Atom® processor C3758, 8-core 16M cache, up to 2.20 GHz
Intel Atom® processor C3558, 4-core 8M cache, up to 2.20 GHz
Chipset Integrated in CPU
Memory 4 x DDR4 2133MHz ECC (By CPU) or non-ECC UDIMM, Support RDIMM
Memory Max. UDIMM up to 64GB
RDIMM up to 128GB
Cooling method / System Fan Two system fans (PUZZLE-IN003B-C0 sku)
Fanless (PUZZLE-IN003B-C1 sku)
Physical Characteristics
Dimensions (LxWxH) (mm) 206 x 225 x 44.2
Net Weight 2 kg
Storage 1 x SATA : SATA DOM + 1 x SATA power 5V
1 x M.2(NGFF) M key 2260/2280, Support PCIe 3.0 x4 nVME
1 x eMMC : 32GB
I/O Interface
Ethernet 2 x SFP+ : 10 GbE (Integrated in CPU)
6 x LAN : GbE RJ-45 (NIC: Intel I211-AT, GbE PHY: Marvell 88E1512)
I/O Interface 1 x External USB 2.0
1 x External USB 3.2 Gen1x1
1 x Console port(s) : RJ45
Expansion 1 x PCIe mini Card Slot (PCIe 3.0, USB 2.0) with SIM slot
1 x M.2(NGFF) A key (PCIe 3.0& USB 2.0)
Wi-Fi 2 for Wi-Fi/2 for WWAN
Other Features
TPM 1 x TPM 2.0 pin header
Input 1 x DC jack, 12 V DC-in, 60W
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity Relative humidity: 5% ~ 90% non-condensing
Safety & EMC CE / FCC / RoHS
OS Support
OS Support Linux Ubuntu 18.04.04
CentOS 7/ Red Hat/Fedora EPEL
Microsoft Windows 10

Ordering Information

PUZZLE-IN003B-C1/8G-R10 Desktop Network Appliance with Intel® ATOM® C3558 Processor , 6 x 1GbE, 2 x 10 GbE, 8GB DDR4, eMMC 32GB & 2x M.2 slot
PUZZLE-IN003B-C0/8G-R10 Desktop Network Appliance with Intel® ATOM® C3758 Processor , 6 x 1GbE, 2 x 10 GbE,8GB DDR4, eMMC 32GB & 2x M.2 slot

Package Contents

Package Content
  • .1 x Power cord

  • .1 x Power adapter

  • .2 x Rack mounting ears

  • .6 x Screws for rack mounting ears

  • .USB to console cable (Option)

  • .RS-232 to console cable (Option)
