End of Life Notice
* Effective Date: 2021/06/15

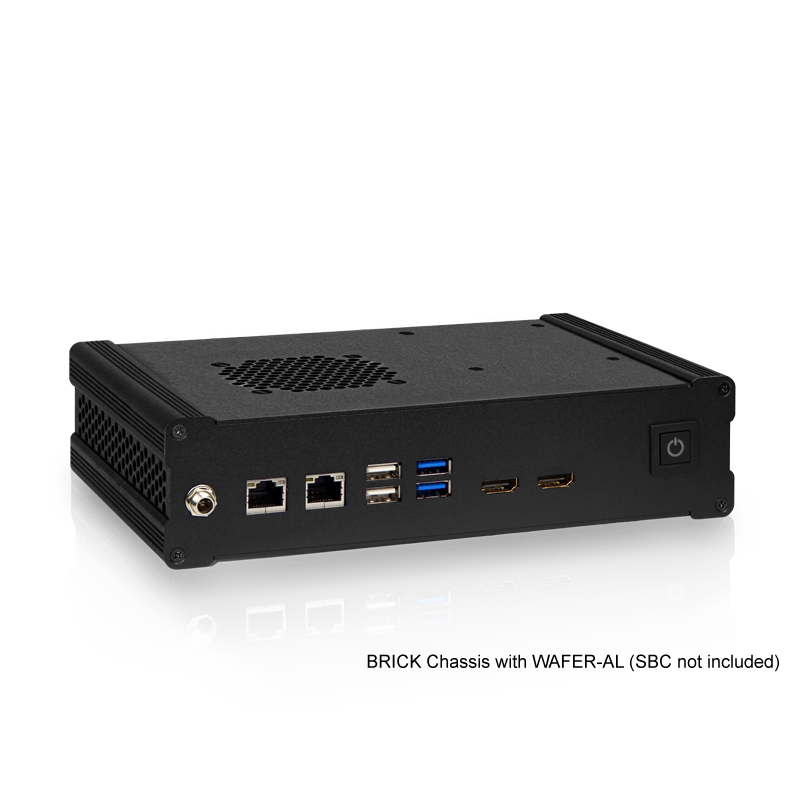

» Designed for EPIC / 3.5” SBC with DC input
» Flexible SBC compatibility
» One 2.5” hard drive capacity
» Cost-effective, RoHS compliant design
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Refer to NANO/WAFER Series |
| I/O Interface | |
| I/O Openings | Reserved IO window for COM port expansion |
| I/O Ports | Refer to SBCs |
| Expansion Slots | |
| Expansion Slots | Refer to SBCs |
| System | |
| Cooling method / System Fan | Refer to SBCs |
| Drive Bays | 1 x 2.5” HDD bay |
| Indicator&Buttons | |
| Buttons | Power switch with LED |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 220 x 143 x 55 mm |
| Weight | |
| Weight | 1.2kg/1.5kg |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
Ordering Information
| BRICK-WAFER-BT-R10 | Embedded chassis for WAFER-BT SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS |
|---|---|
| BRICK-WAFER-AL-R10 | Embedded chassis for WAFER-AL SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS |
| BRICK-NANO-BT-R10 | Embedded chassis for NANO-BT SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS |
| BRICK-NANO-AL-R10 | Embedded chassis for NANO-AL SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS |
Package Contents
| Package Content |
|
|---|
