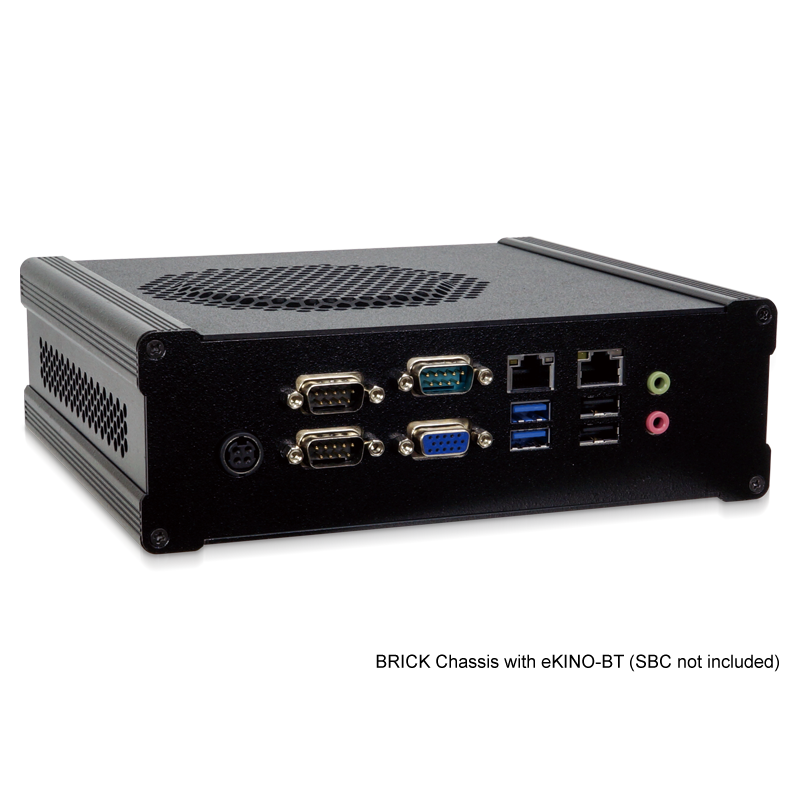

BRICK-KINO

Embedded Chassis for IEI DC input Mini-ITX SBC

End of Life

BRICK industrial chassis
  • BRICK industrial chassis

End of Life Notice

* Effective Date: 2021/06/15

» Designed for Mini-ITX SBCs with DC input
» Flexible SBC compatibility
» One 2.5” hard drive capacity
» Cost-effective, RoHS compliant design

Hardware Spec.

Form factor
SBC Form Factor Refer to KINO Series
I/O Interface
I/O Openings Reserved IO window for COM port expansion
I/O Ports Refer to SBCs
Expansion Slots
Expansion Slots Refer to SBCs
System
Cooling method / System Fan Refer to SBCs
Drive Bays 1 x 2.5” HDD bay
Indicator&Buttons
Buttons Power switch with LED
Color
Color Black
Dimensions
Dimensions 203 x 178 x 64 mm
Weight
Weight 1.25kg/1.5kg
Environment
Operating Temperature 0°C ~ 40°C

Ordering Information

BRICK-tKINO-ULT3-R10 Embedded chassis for tKINO-ULT3 SBC, with IO bracket ,power switch, mat black and RoHS
BRICK-tKINO-BW-R10 Embedded chassis for tKINO-BW SBC, with IO bracket ,power switch, mat black and RoHS
BRICK-tKINO-AL-R10 Embedded chassis for tKINO-AL SBC, with IO bracket ,power switch, mat black and RoHS

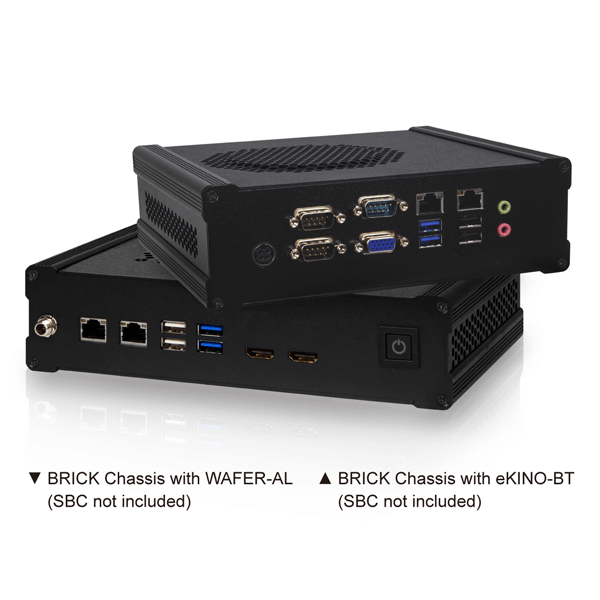

BRICK-eKINO-BT-R10 Embedded chassis for eKINO-BT SBC, with IO bracket ,power switch, mat black and RoHS
BRICK-KINO-DBT-R10 Embedded chassis for KINO-DBT SBC, with IO bracket ,power switch, mat black and RoHS
BRICK-KINO-DAL-R10 Embedded chassis for KINO-DAL SBC, with IO bracket ,power switch, mat black and RoHS

Package Contents

Package Content
  • 1 x BRICK Chassis

  • 1 x Power switch cable

  • 1 x Screw set

  • 1 x QIG
