EMB-WIFI-KIT

PCIe Mini card wireless LAN module kit

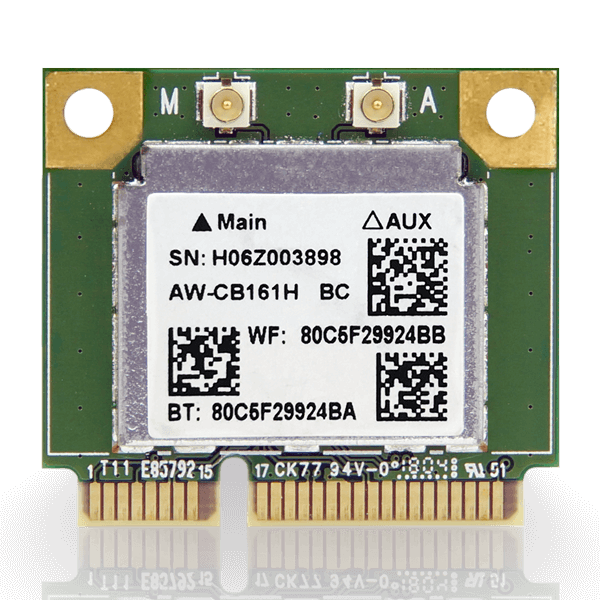

EMB-WIFI-KIT Wireless Module
  • EMB-WIFI-KIT Wireless Module
» Half size PCIe Mini card form factor
» High speed wireless connection up to 433.3Mbps transmit/receive PHY rate using 80MHz bandwidth
» Low power consumption and high performance
» Fully qualified Bluetooth 4.0
» Solid design with external antenna diversity

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 29.85 X 26.65 X 1.5
Net Weight 3.28g
Wireless
Wi-Fi 2.4GHz
Bluetooth 2402MHz~2483MHz
Environment
Operating Temperature 0°C ~ 70°C

Ordering Information

EMB-WIFI-KIT11-R20 1T1R wifi module kit for embedded system, IEEE802.11a/b/g/n/ac WiFi with Bluetooth 4.0/3.0+HS, 1 x wifi module, 2 x 400mm RF cable, 2 x Antenna, RoHS
EMB-WIFI-KIT01-R20 1T1R wifi module kit for embedded system, IEEE802.11a/b/g/n/ac WiFi with Bluetooth 4.0/3.0+HS, 1 x wifi module, 2 x 250mm RF cable, 2 x Antenna, RoHS
