With PoE technology, users can easily connect various PoE PD supported IP camera to the control system through the standard CAT-5/CAT-6 cable (up to 100 meters) to transfer both electrical power and data at the same time. In this application, users can lower the difficulty of routing to avoid the risk of power adapter failure, and easily build the system to act as PSE, allowing the entire production process to be monitored and controlled from A to Z.
For both GPOE 2P and 4P, IEI built- in “GPOE management software” functions to monitor and control from Software to provide access to a computer from a remote location. Also, customer could download IEI Software Development Kit to design your own interface.
Mostly the embedded system will not only insert one GPOE card, IEI GPOE-6P provides two LED light and management software tools to clarify the function for each cards and ports. IEI GPOE management software tools could control the power and monitor the speed and process of data transfer through LAN.
Access control system can be easily developed by connecting PoE-capable devices like door controller, locking system and RFID reader. Combining power supply and data transmission in a single cable can save both cost and time on system installation. It is also easy to integrate IP-based system into the existing IP infrastructure.
The GPOE series can be easily added into in-vehicle control system and connect to various devices like surveillance camera, bus payment terminal or in-bus digital signage system. Both data and electrical power can run on standard CAT-5/CAT-6 cable to lower the difficulty of routing and avoid the risk of power adapter failure.
|Dimensions (LxWxH) (mm)
|130 X 65
Description: Intel® I211-AT controller
9kB jumbo frame
IEEE 802.3az, IEEE1588
12~24V DC input
1 x Internal DC input (1x4 pin)
1 x Internal DC input (2x3 pin)
**Caution! Choose one input only at a time
|0°C ~ 60°C
|-10°C ~ 70°C
|5% ~ 95%, non-condensing
|Safety & EMC

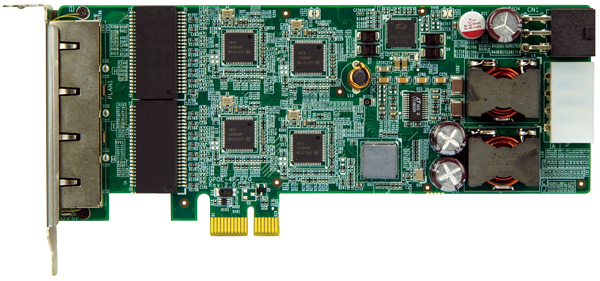

|PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile, RoHS
