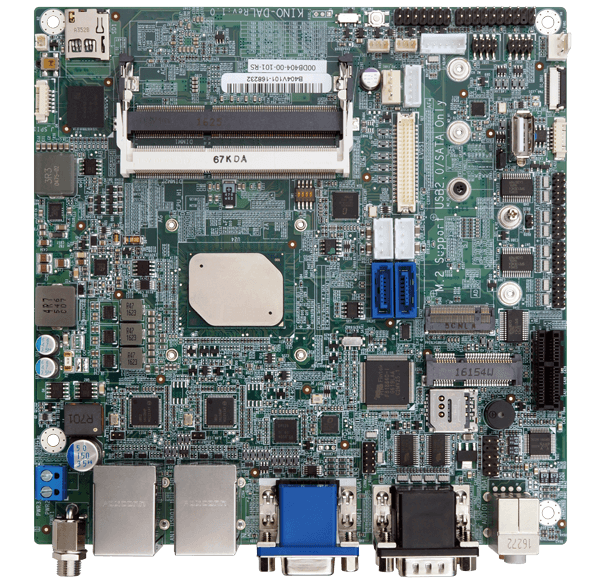

KINO-DAL

Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC with HDMI™/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS

End of Life

KINO-AL-SBC
  • KINO-AL-SBC

End of Life Notice

* Effective Date: 2023/10/23

» Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC supports dual-channel DDR3L SO-DIMMs
» Triple independent display support
» Optional wide range 9V~30V DC input design
» Full size PCIe Mini slot with SIM sockets for 3G/LTE expansion
» COM, USB 3.0, SATA 6Gb/s, M.2, eMMC 5.0 and audio support

Hardware Spec.

System
CPU Intel® Atom® x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
Intel® Atom® x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
Intel® Atom® x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Memory Two 204-pin 1866/1600MHz Dual-channel DDR3L SO-DIMMs
Memory Max. 8GB
Physical Characteristics
Dimensions (LxWxH) (mm) 170 X 170
Net Weight 700g
Storage
Storage 2 x SATA :6Gb/s with 5V SATA power connector
1 x SD/MicroSD card optional
1 x eMMC :5.0(optional, up to 32GB)
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x HDMI™ :up to 3840x2160@30Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
Ethernet 2 x LAN :PCIe GbE LAN Intel® i211 AT controller
Audio Description: Realtek ALC662 HD codec
1 x Line out :on rear IO
1 x Mic :on rear IO
Front Audio :2x5 pin
I/O Interface 2 x External RS-232/422/485
4 x Internal RS-232 :2x5 pin, P=2.0
5 x Internal USB 2.0 :1 x A type, 4 X 2x4 pin, p=2.0
4 x Internal USB 3.2 Gen1x1
1 x PS/2 :1x6 pin
Expansion 1 x PCIe x1
1 x PCIe mini Card Slot :Full/Half-size PCIe Mini slot
1 x M.2(NGFF) :B key(2242/2260/2280, USB 2.0 & colay SATA2)
Other Features
TPM 2x10 pin
Power
Power Consumption 12V@3.64A (Intel® Pentium® N4200 CPU with two 8GB 1600MHz DDR3L memory)
Power Supply 12V only DC input as Default/ 9V~30V DC input (optional)
1 x Internal power connector (2x2 pin)
1 x External DC power Jackc (Ø5.5mm)
Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 70°C / -40°C ~ 85°C (KINO-DAL-ExW2)
Storage Temperature -40°C ~ 85°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-DAL-N1-R10 Mini-ITX SBC supports Intel® 14nm dual-core Celeron® N3350 2.3GHz on-board SoC with HDMI™/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
KINO-DAL-J2-R10 Mini-ITX SBC supports Intel® 14nm quad-core Celeron® J3455 2.3GHz on-board SoC with HDMI™/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS

Package Contents

Package Content
  • 1 x KINO-DAL single board computer with heatsink

  • 1 x I/O Shielding

  • 1 x SATA with power cable kit

  • 1 x QIG
