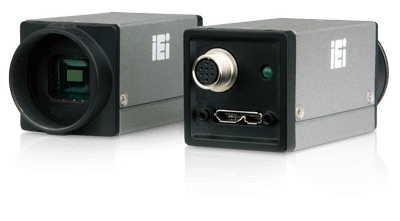

USB 3.0 Monochrome Camera & Opto-isolated I/O, 1/1.8” E2V CMOS, Global Shutter, 1280x1024 Pixels, without Lens, RoHS

End of Life

End of Life Notice

* Effective Date: 2019/11/06

» Compact 1/1.8”e2V CMOS sensor with global shutter
» Large pixel: 5.3 µm / Frame rate: 60fps / Resolution: 1280x1024
» High bandwidth, provides power and data over a single cable.
» Lower cost implementation, Plug-and-play and easier to set up.
» Adopted as “USB3 Vision” standard and supported vision software such as Halcon, Merlic, MIL, NI LabVIEW.

Hardware Spec.

Dimension 29 mm x 29 mm x 57 mm
Net Weight 85g
Capture Interface
Interface Type 1 x USB3.0
Safety & EMC CE/EMC, FCC
Operating Temperature 0° ~ 50°C
Storage Humidity 30% ~ 95%
Storage Temperature -30° ~ 60°C
Operating Humidity 20% ~ 80%
I/O Interface
I/O Interface 1 x Trigger connection(IO connecting cable with an 8-pin male connector)
Power Requirements 5V via USB 3.0 or 6-18V via Opto-isolated input
Opto-isolated I/O Ports 1 input, 1 output
ADC 8-bit/10-bit
Pixel Size 5.3µm
Readout Method Global shutter
Resolution 1280 x 1024
Sensor Name E2V EV76C560
Sensor Type CMOS
Non-isolated I/O Ports 1 x RS-232
Sensor Size (inch) 1/1.8"
Auxiliary Output 5V, 100 mA max
Chroma Mono
Compliance CE, FCC
Frame Rate 60FPS (Max)
Interface USB3 Vision v1.0
Lens Mount CS-mount
Megapixels 1.3-megapixel
Software Support
SDK Windows
OS Support Microsoft Windows 10 32-bit
Microsoft Windows 10 64-bit
Microsoft Windows 7 32-bit
Microsoft Windows 7 64-bit
Microsoft Windows 8.1 32-bit
Microsoft Windows 8.1 64-bit
Sensor Specifications
Acquisition Continuous, Single Frame, Multi Frame

Ordering Information

HSC-13M4-E-R10 USB3.0 Monochrome Indutrial camera,1/1.8-inch/1280 x 1024 pixel,60FPS/E2V/CMOS

Package Contents

Package Content
  • 1 x HSC-13M4-E

  • 1 x Mounting bracket

  • 1 x CS to C mount adapter

  • 1 x QIG
