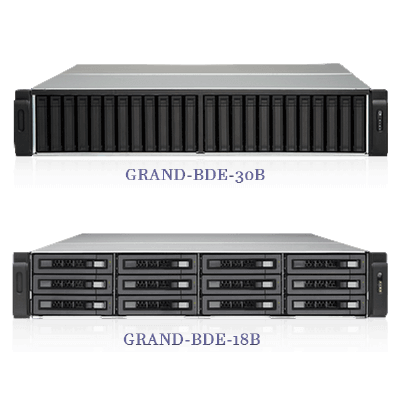

GRAND-BDE

Intel® Xeon® Processor D-1500 Family Processor

End of Life

End of Life Notice

* Effective Date: 2020/06/16

» Intel® Xeon® D processor optimizes performance and efficiency
» 4 x DIMM Slots, Install up to 128 GB memory with 4 x 32GB DIMMs
» 5 x PCIe slot can support 40GbE network card
» Storage expandable, up to 1PB

Hardware Spec.

Form Factor
Form Factor 2U, Rackmount
System
CPU Intel® Xeon® Processor D-1521, 4 core 2.4 GHz
Intel® Xeon® Processor D-1531, 6 core 2.2 GHz
Intel® Xeon® Processor D-1548, 8 core 2.0 GHz (for GRAND-BDE-30B only)
Memory Total DIMM slots: 4
Memory Max. DDR4 128GB (32GB RDIMM x 4)
Cooling method / System Fan 4 x 6 cm High efficiency fan
Physical Characteristics
Rack Height 2U
Dimensions (LxWxH) (mm) GRAND-BDE-30B : 88.3 x 439 x 484.5 mm
GRAND-BDE-18B : 88 x 442.5 x 530.5 mm
Net Weight GRAND-BDE-30B : 13.98 kg / 30.82 lb
GRAND-BDE-18B : 15.1 kg / 32.28 lb
Storage
Storage Description:(SSD drive bay -
GRAND-BDE-18B: 12 x 2.5" / 3.5"[Front] ; 6 x 2.5"[Rear]
GRAND-BDE-30B: 24 x 2.5"[Front] ; 6 x 2.5"[Rear])
I/O Interface
Ethernet 4 x LAN(Gigabit)
I/O Interface 2 x External USB 3.0
Expansion 2 x PCIe x 4
2 x PCIe x 8
Description:(Support specific 10GbE PCIe network card (P/N: LAN-10G2F-PHY-CS4227))
Power
Power Consumption GRAND-BDE-30B : In Operation: 255.04W
GRAND-BDE-18B : In Operation: 229.53W
Power Supply Redundant power: input 90 to 264VAC: 450W x 2
Environment
Operating Temperature 0~40˚C
Humidity 5 to 95% non-condensing, wet bulb:27˚C.

Ordering Information

GRAND-BDE-18B-D1521-R10 2U 12Bay front 3.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1521, 450W redundant PSU, RoHS
GRAND-BDE-18B-D1531-R10 2U 12Bay front 3.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1531, 450W redundant PSU, RoHS
GRAND-BDE-30B-D1521-R10 2U 24Bay front 2.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1521, 450W redundant PSU, RoHS
GRAND-BDE-30B-D1531-R10 2U 24Bay front 2.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1531, 450W redundant PSU, RoHS
GRAND-BDE-30B-D1548-R10 2U 24Bay front 2.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1548, 450W redundant PSU, RoHS

Package Contents

Package Content
  • Ethernet cable x 4

  • Power cord x 2

  • Flat head screws (For 2.5” HDD)

  • Flat head screws (For 3.5” HDD) for GRAND-BDE-18B-R10 only
