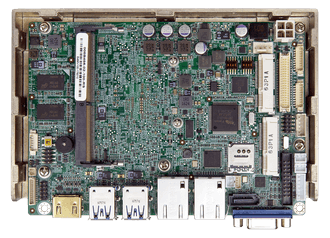

3.5” SBC supports Intel® 7th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support

End of Life

End of Life Notice

* Effective Date: 2021/12/20

» 3.5” SBC with Intel® 7th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request)
» Triple display with VGA/iDP, HDMI™ and LVDS selection
» Two PCIe Mini with mSATA/SIM card slot support
» Intel® GbE LAN with Intel® AMT 11.0 supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU 7th generation Intel® mobile ULT processor
Intel® Core™ i7-7600U (up to 3.9GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-7300U (up to 3.5GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-7100U (up to 2.4GHz, dual-core, 3MB cache, TDP=15W)
Memory 1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1)
On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 146 X 102
Net Weight 250
Storage 1 x SATA :6Gb/s
1 x mSATA
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x HDMI™ :up to 4096x2160@30Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
1 x iDP :for HDMI™, LVDS, VGA, DVI, DP (co-layout with VGA)
Ethernet 2 x LAN :1 x Intel® I219LM,1 x Intel® I211AT
Audio Description: :1 x HD audio (2x5 pin, supports 7.1-channel HD audio by AC-KIT-892HD-R10)
I/O Interface 2 x Internal RS-232/422/485 :1x9 pin, P=1.25
4 x External USB 3.2 Gen1x1
2 x Internal USB 2.0 :2x4 pin, P=2.0
Expansion 2 x PCIe mini Card Slot :1 x Support mSATA,1 x support SIM card
Power Consumption 12V@4.27A (Intel® Core™ i7-6600U up to 3.4GHz CPU with 16GB 2133MHz DDR4 memory running in 3.0GHz)
Power Supply 12V only DC input,1 x internal power connector(2 x 2 pin, or optional terminal block)
Operating Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 60°C
Humidity 5% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

WAFER-ULT4-i5-R10 3.5" SBC supports Intel® 7th Generation ULT Core™ i5-7300U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI™, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS

Package Contents

Package Content
  • 1 x WAFER-ULT4 single board computer with heat spreader

  • 1 x Power cable

  • 1 x RS-232/422/485 cable

  • 1 x QIG

  • 1 x SATA with power cable kit
