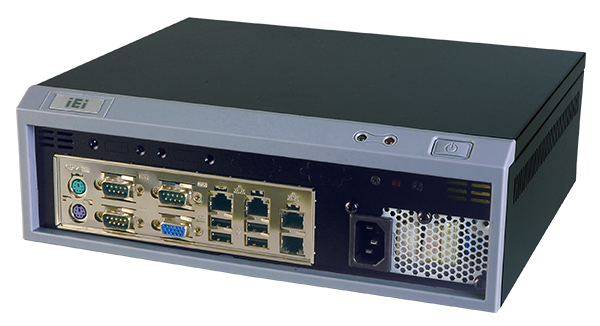

Mini-ITX Chassis for High Power Consumption Applications

End of Life

End of Life Notice

* Effective Date: 2021/12/28

» Designed for high performance applications, bundled with 270W high efficiency ATX power supply
» Front accessible I/O design
» One 3.5” hard drive capacity

Hardware Spec.

Form factor
SBC Form Factor Refer to KINO Series
SBC Size: Mini-ITX (170mm x 170mm)
Cooling method / System Fan 60 x 60 x 25
Drive Bays 1 x 3.5” SATA HDD space
Physical Characteristics
Construction Heavy duty metal with plastic front panel
Desktop, wall mount
Color Black
Dimensions 280 x 230 x 88
Weight 2.5 kg/3.9 kg
Operating Temperature 0°C ~ 50°C

Ordering Information

EBC-3000-R11/ACE-A627A Mini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A627A-RS 270W ATX power supply,black,ROHS
EBC-3000-R11/ACE-A618A Mini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A618A-RS 180W ATX power supply,black,ROHS

Package Contents

Package Content
  • 1 x System fan

  • 1 x Screw set

  • 1 x QIG

  • 1 x Power cord

  • 1 x Wall mount kit
