Handheld 1D/2D Barcode Reader, 1280x1024, 10 ~ 270 mm Reading Distance, USB Interface

End of Life

  • htdb-100fm-withreddot-award-330

End of Life Notice

* Effective Date: 2019/04/12

» Read 1D, 2D barcodes on paper and mobile phones
» Strong ability to read barcodes, can decode broken, curved and blurry printed barcode fast
» Read multiple barcodes by holding the trigger
» IP41 rating against dust and moisture
» Rugged design, 1.8 m/5.9 ft. drop to concrete
» Ergonomic and beautiful design for long time usage, suitable for left- and right-handed users
» Medical Grade Design: Anti-bacterial surface (HTDB-100FM)

Hardware Spec.

Dimension 17.5 cm x 5.9 cm x 11.2 cm
Net Weight 120 g
Electrical Safety UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed,
EN60950-1/IEC60950-1 2nd ed
EMI/RFI FCC Part 15 Class B, EN55032 Class B, EN55024,
Medical Electrical Equipment:EN60601-1-2, FCC Part 18
LED Safety IEC/EN62471
Humidity 0 to 95% relative humidity, non-condensing
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -10°C to 65°C (13°F to 149°F)
Interface RJ-45 to USB 2.0
Power Consumption 2 W ~ 3 W
Power Supply 1 x Input voltage(5V)
Software Support
SDK Windows
OS Support Microsoft Windows 8.1 64-bit
Microsoft Windows 10 64-bit
Microsoft Windows 8.1 32-bit
Microsoft Windows 7 32-bit
Microsoft Windows 10 32-bit
Microsoft Windows 7 64-bit
Light Source
Illumination Green LED
Lens Specifications
Reading distance 10 mm ~ 270 mm
Scan Performace
FOV Horizontal: 42.4°
Vertical: 34.4°
Diagonal: 53°
Motion Tolerance Up to 350 cm/s for 13 mil UPC at optimal focus
MTF 100 lp/mm (>10%)
Print Contrast 20% minimum reflectance difference
Sensor Specifications
Resolution Area image (1280 x 1024 pixel array, 1.3M pixels)
1D UPC/EAN((UPC/EAN)with supplementals)
Code 39(/Code 39 Full ASCII)
Code 128
Bookland EAN
Interleaved 2 of 5
ISBT 128
UCC coupon Extended Code
Code 93
2D PDF417
Micro QR Code
Micro PDF417
Data Matrix
QR Code

Ordering Information

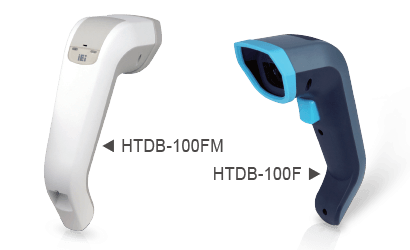

HTDB-100F-R10 Handheld barcode reader with 1D/2D barcode decoding, 1280x1024, 10 ~ 270 mm reading distance, USB interface, RoHS
HTDB-100FM-R10 Handheld barcode reader with 1D/2D barcode decoding, 1280x1024, 10 ~ 270 mm reading distance, anti-bacterial surface, USB interface, RoHS

Package Contents

Package Content
  • 1 x HDTB-100F/FM handheld 1D/2D barcode reader

  • 1 x RJ-45 to USB cable

  • 1 x QIG
