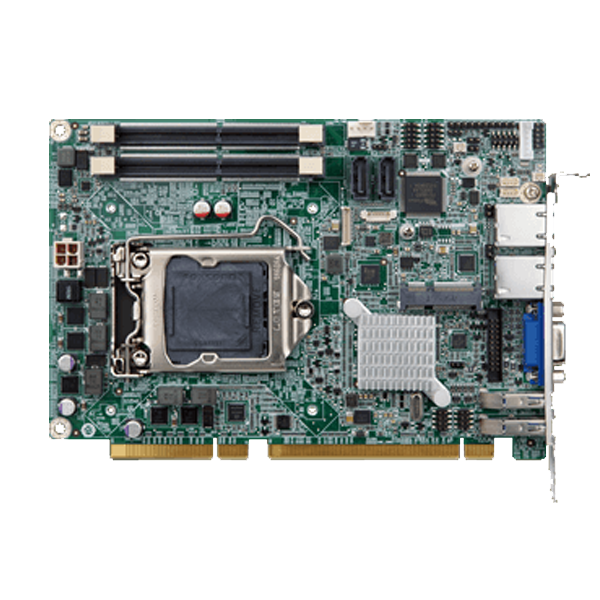

Half-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170,

End of Life

End of Life Notice

* Effective Date: 2023/10/23

» PICMG 1.3 half-size CPU card
» LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Two 260-pin 1867/2133 MHz dual-channel DDR4 SO-DIMMs support up to 32 GB
» Supports dual independent display by VGA & internal DP pin header
» PCIe Mini supports mSATA & USB 2.0
» Intel® PCIe GbE with Intel® AMT 11.0 supported
» Supports RAID 0, 1 function via SATA 6Gb/s
» IEI jumper-less function

Hardware Spec.

CPU LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processo
Memory Two 260-pin 1866/2133 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMM
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 169 X 126
Net Weight 420g
Storage 2 x SATA :6Gb/s(RAID 0/1 support)
1 x mSATA :SATA & USB signal
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 support
LAN2: Intel® I211 PCIe controller
Audio Description: Support 7.1-channel HD Audio by IEI AC-KIT-892HD kit
I/O Interface 2 x Internal RS-232/422/485 :2x5 pin, p=2.0
2 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.0
1 x PS/2 :1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x16 : signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
1 x PCIe x4 : signal from Q170 via golden finger
1 x Full/Half-size PCIe Mini card slot (supports mSATA)
Power Consumption 5V@0.15A, 12V@8.39A, 3.3V@0.11A, 5VSB@0.21A
(Intel® Core™ i7-6700K 4.0GHz with two 16 GB 2133 MHz DDR4 memory)
Power Supply 5V/12V, Support AT/ATX mode
Operating Temperature -20°C ~ 60°C
Humidity 5% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

HPCIE-Q170-R10 Half-size PICMG 1.3 CPU card supports LGA 1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® Q170, DDR4 SO-DIMM, VGA, iDP, Intel GbE, USB 3.0, mSATA, SATA, PCIe Mini, Intel® AMT and RoHS

Package Contents

Package Content
  • 1 x HPCIE-Q170 single board computer

  • 1 x SATA cable

  • 1 x QIG
