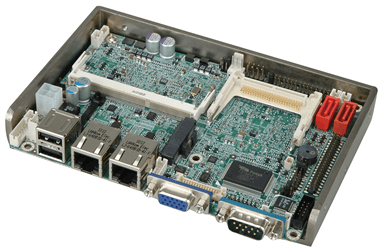

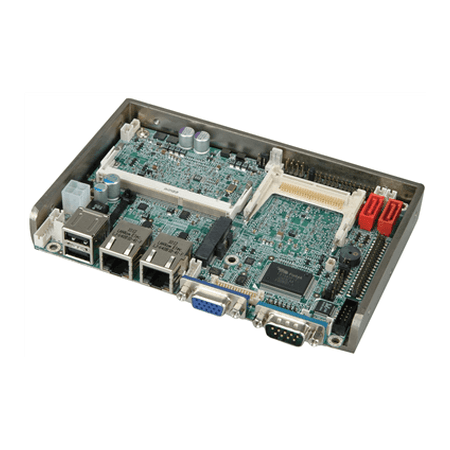

WAFER-PV-D5252/D4252/N4552

3.5” SBC with Intel® Atom™ D425/N455/D525

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» 3.5” form factor with Intel® Atom™ D525/D425/N455 processor supports DDR3 memory
» 12V only single voltage design for AT/ATX power
» Open frame heatsink thermal design for fanless solutions
» Support VGA and 18-bit single-channel LVDS with dual display support
» Complete I/O with eight USB, two SATA 3Gb/s, one CF Type II, six COM and audio
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display
Display VGA :
(up to 2048x1536 (D525/D425) or 1400x1050 (N455) @60Hz)
18-bit single-channel LVDS :
(up to 1366x768 (D525/D425) or 1024x768 (N455) @60Hz)
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -10°C ~ 60°C
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini card slot
I/O Interface
Audio Realtek ALC662 HD Audio codec
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Ethernet LAN1: Realtek RTL8111E controllers with ASF2.0 support
LAN2: Realtek RTL8111E controllers
I/O Interface
I/O Interface 1 x KB/MS
1 x RS-232/422/485
4 x RS-232
6 x Internal USB 2.0
Power
Power consumption 12V@1.79A (Intel® Atom™ D525 with one 1 GB 800 MHz DDR3 memory)
System
CPU Intel® Atom™ D525 (1.8GHz, dual-core, 1MB cache)
Intel® Atom™ D425 (1.8GHz, single-core, 512KB cache)
Intel® Atom™ N455 (1.66GHz, single-core, 512KB cache)
Memory Max. One 204-pin 800 MHz DDR3 SDRAM SODIMM slot supports up to 4 GB (D525/D425) or 2 GB (N455)

Ordering Information

WAFER-PV-D5252-R11 3.5" SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS
WAFER-PV-D4252-R11 3.5" SBC with Intel® Atom™ D425 1.8GHz, DDR3, VGA/LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS
WAFER-PV-N4552-R11 3.5" SBC with Intel® Atom™ D455 166GHz, DDR3, VGA/LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS

Package Contents

Package Content
  • 1 x WAFER-PV-D5252/D4252/N4552 single board computer

  • 1 x Audio cable

  • 1 x Heat spreader

  • 1 x KB/MS cable

  • 1 x Mini jumper pack

  • 1 x Power cable

  • 1 x One Key Recovery CD

  • 1 x Quad RS-232 cable

  • 1 x Utility CD

  • 1 x SATA with 5V output cable

  • 1 x QIG
