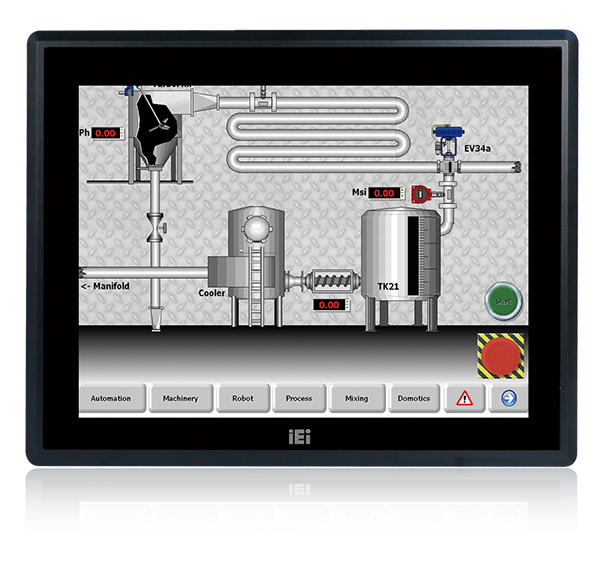

DM-F15A

6.5”~15” DM-F IP65 Industrial Monitor

» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» DC input
» DVI / VGA flexible video input solution
» Resistive single touch
» Wide temperature support

Hardware Spec.

Display
Backlight MTBF(hrs) 70000
Brightness(cd/m2) 450
Contrast Ratio 800:1
LCD Size 15”(4:3)
Max Resolution 1024 (W) x 768 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 70°C
I/O Interface
I/O Ports and Switches 1 x VGA (DB-15)
1 x HDMI™
1 x DisplayPort1.1
1 x USB 2.0 (touch)
1 x RS-232 (reserved for resistive touch ATO)
1 x Lockable 9V-36V DC jack
1 x 9V-36V terminal block
LCD
LCD Color 16.2M
Pixel Pitch (mm) 0.29 x 0.29
Viewing Angle (H-V) 160° / 150°
Physical Characteristics
Cutout Dimensions 285.6 x 361.1
Dimensions (LxWxH) (mm) 303 x 378.5 x 43.2
Power
Power adapter 9V~36V DC
Touch
Touch Controller 5-wire resistive single touch window/ Penmount 6000
Touch Screen 2-point projected capacitive touch window/ EETI EXC7200
Weight
Weight 3.5 / 5.5

Ordering Information

DM-F15A/R-R41 15" 450 cd/m² XGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB resistive touch screen, 9 ~36V DC input, Powder paint, R41
DM-F15A/PC-R41 15" 450 cd/m² XGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, Powder paint, R41

Package Contents

Package Content
  • 1 x Touch Pen

  • 1 x USB Cable

  • 1 x VGA Cable
