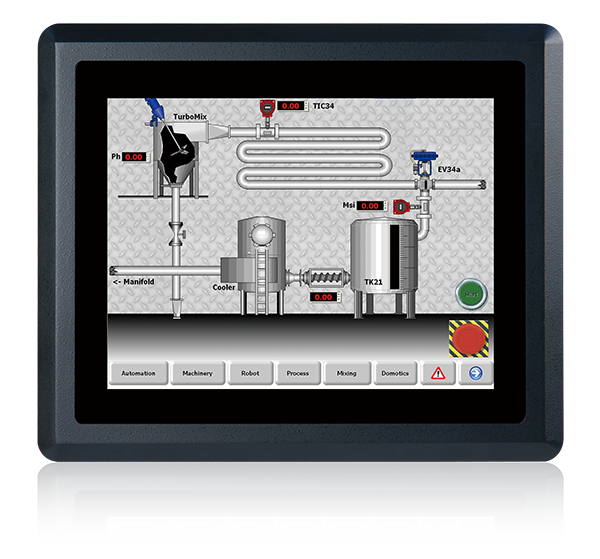

8” Fanless Panel PC with Intel® Bay Trail Solution

» 8” fanless industrial panel PC
» 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
» Low power consumption DDR3L memory supported
» IP 65 compliant front panel
» 9 V~30 V wide DC input
» mSATA SSD suppoted
» Dual GbE for backup
» -10°C~50°C extended operating temperature

Hardware Spec.

LCD Size 8”(4:3)
Brightness(cd/m2) 500
Max Resolution 800(W) x 600(H)
Contrast Ratio 500:1
Backlight MTBF(hrs) 50000
CPU Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
I/O Interface
RAM 1 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
I/O Ports and Switches 1 x RJ-45 LAN port
1 x RS-232 COM port (DB-9 connector)
1 x RS-422/485
2 x USB 3.0
1 x 9 V~30 V DC lockable DC jack (2-pin)
1 x Audio port (line-out)
1 x Power switch
Power adapter 9V~30VDC
Operating Temperature -10°C~50°C (14°F~122°F)
Safety & EMC CE & FCC Class A certified
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C~60°C (-4°F~140°F)
IP Level Front IP 65
Physical Characteristics
Color Black C
Mounting Stand, panel mount, rack mount,
VESA 75x75
Dimensions (LxWxH) (mm) 182.2 x 222.2 x 44
Construction Aluminum front bezel
Cutout Dimensions 207 x 154
Weight 1.17 kg
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal)
1 x Full-size/Half-size PCIe Mini slot (PCIe signal only)
LCD Color 16.2M
Pixel Pitch (mm) 0.2025 (H) x 0.0675 (V)
Viewing Angle (H-V) 140° / 120°
Touch Screen 5-wire resistive type flat touchscreen
I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Power Switch
1 x RS-232 (RJ-45)
1 x RS-422/485 (DB-9)
2 x USB 3.2 Gen1x1
1 x Audio (line-out)
1 x Reset Button
2 x LAN (GbE)
1 x Power In (9-30V Lockable power jack)

Ordering Information

PPC-F08B-BT-J1/2G/R-R12 8" 500 cd/m2 SVGA Panel PC with Intel® Celeron® Processor J1900, TDP 10W, 2GB DDR3L RAM, black color,Powder paint, 9-30V DC input, resistive touch window, R12

Package Contents

Package Content
  • 1 x PPC-FxxB-BTi Panel PC

  • 1 x User Manual

  • 1 x Touch Pen

  • 1 x Power Cord

  • 1 x Screw Pack

  • 1 x Power Adapter
