PPC-F15A-H81

Intelligent Industrial Panel PC

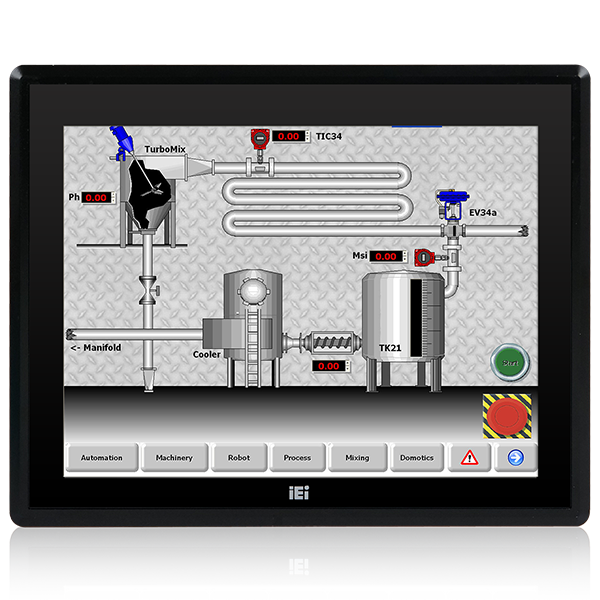

PPC-F15A-H81-panel-PC
PPC-F15A-H81-panel-PC
  • PPC-F15A-H81-panel-PC
  • PPC-F15A-H81-panel-PC
» Scalable Intel® H81 chipset supports LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP
» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» Projected capacitive multi-touch
» Dual full-size PCIe Mini card expansion
» AC/DC power input options (DC model by build to order manufacturing)

Hardware Spec.

Display
Backlight MTBF(hrs) 70000
Brightness(cd/m2) 450
Contrast Ratio 800:1
LCD Size 15”(4:3)
Max Resolution 1024 (W) x 768 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -10°C~50°C (14°F~122°F)
Storage Temperature -20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches 2 x RJ-45 LAN Port
2 x USB 3.0
4 x USB 2.0
1 x HDMI™ output
4 x RS-232
1 x RS-422/485
1 x VGA output
1 x AC/DC power plug (DC model is by build to order manufacturing)
1 x AT/ATX switch
1 x Clear CMOS
1 x Reset button
1 x Power switch
LCD
LCD Color 16.2M
Pixel Pitch (mm) 0.29 x 0.29
Viewing Angle (H-V) 160° / 140°
Physical Characteristics
Cutout Dimensions 285.6 x 361.1
Dimensions (LxWxH) (mm) 303 x 378.5 x 68.7
Power
Power Supply AC input ATX power supply
220W power supply
Input: 90VAC-264VAC, 50/60Hz
Output (max.): 3.3V@10A, 5V@14A, 12V@14A, -12V@0.3A
Touch
Touch Controller 5-wire resistive type single touch window (Penmount 6000), 3H
Touch Screen 2-point projected capacitive touch window (EETI EXC7200), 6H
Weight
Weight 5.6/ 8.3

Ordering Information

PPC-F15AA-H81i-i5/4G/R-R23 15" 450 cd/m2 XGA Panel PC with Intel H81 chipset, Core i5 Quad Core i5-4570S Processor (6M Cache, up to 3.60 GHz), TDP 65W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622C, resistive touch window with AG coating, R23
PPC-F15AA-H81i-P/4G/R-R23 15" 450 cd/m2 XGA Panel PC with Intel H81 chipset, Intel® Pentium® Processor G3420 (3M Cache, 3.20 GHz), TDP 53W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622C, resistive touch window with AG coating, R23
PPC-F15AA-H81i-P/4G/PC-R23 15" 450 cd/m2 XGA Panel PC with Intel H81 chipset, Intel® Pentium® Processor G3420 (3M Cache, 3.20 GHz), TDP 53W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622C, projective capacitive touch window with AG coating, R23

Package Contents

Package Content
  • 1 x Power Cord (Depends on shipping region)

  • 1 x Screw Kit
