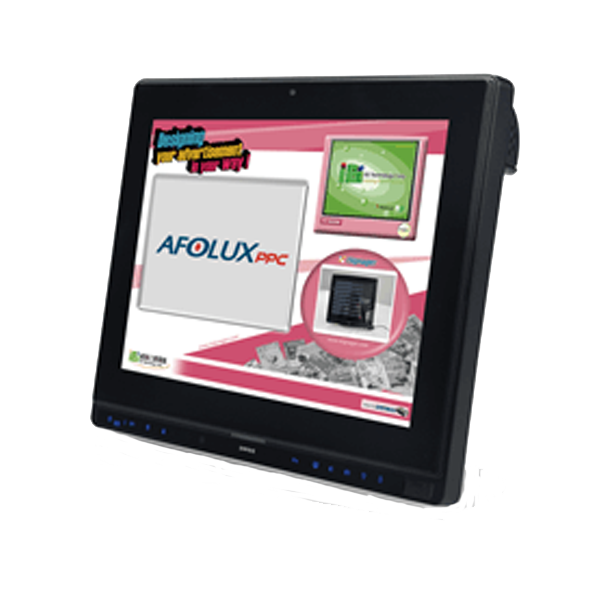

Intel® Core™ i7/i5/i3 Processor

End of Life

End of Life Notice

* Effective Date: 2019/04/19

» 12.1” 600nits 1024 x 768 flat-bezel LCD with LED backlight
» Supports projected capacitive touchscreen or 5-wire resistive type touchscreen
» Built-in two 3W speakers and microphone
» GbE LAN for high speed network applications
» One 204-pin DDR3 SO-DIMM slot (system max. 4GB)
» Wi-Fi 802.11b/g/n high speed wireless
» EM or Mifare RFID reader
» IP 64 compliant front panel
» Auto-dimming control
» Built-in 2 megapixels webcam with AF AE and AWB capabilities
» Wide range 9~36 VDC input

Hardware Spec.

Wi-Fi IEEE 802.11b/g/n
Dimensions 310 x 265 x 52.6
Operating Temperature -20°C~50°C with SSD
Storage Temperature -20°C~60°C
I/O Interface
RAM Support one 204-pin DDR3 SO-DIMM slot (Max. 4GB)
I/O Ports and Switches 1 x RS-232 (DB-9)
1 x RS-232 (RJ-45)
1 x RS-422/485 (4-pin box header)
2 x GbE LAN (RJ-45)
2 x USB 2.0
2 x USB 3.0
1 x Mini USB 2.0 port on front panel
1 x Audio jack (line-out)
Size 12.1"
Resolution 1024 x 768
Brightness (cd/m2) 600
Contrast Ratio 700:1
LCD Color 16.2M
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Viewing Angle (H-V) 160º/140º
Backlight MTBF 50000 (LED backlight panel)
Other Features
Camera 2 M pixels with low light function
System Cooling Fanless
Power Requirement 9~36 VDC
Storage 2.5" SATA 6Gb/s SSD bay
CPU 2nd Generation Intel® Core™ i7/ i5/ i3 and Celeron® processor
Chipset Intel® HM65
Touch Screen 5-wire rsistive type with RS-232 interface
Touch Controller PenMount DMC9000 / EETI EXC7200 & EXC5400
Weight 3.8Kg
I/O Interface
I/O Interface 1 x AT/ATX switch
1 x Audio((line-out))
1 x Clear CMOS Button
1 x DC Input Jack
1 x HDMI™
2 x LAN(GbE LAN (RJ-45))
2 x USB 3.0
1 x Mini USB 2.0(on front panel)
1 x Power Switch
2 x RS-232((DB-9)/(RJ-45))
1 x RS-422/485((4-pin box header))
1 x Reset Button
2 x USB 2.0
1 x MicroSD card slot(on front panel)

Ordering Information

AFL2-12A-HM65/R-R14 12.1" 600cd/m² XGA panel PC,802.11b/g/n,resistive touch screen,2M camera, microphone,Dual GbE LAN, R14
AFL2-12A-HM65/PC-R14 12.1" 600cd/m² XGA panel PC, 802.11b/g/n wireless module, projective capacitive touchscreen,2M camera, microphone,Dual GbE LAN, R14

Package Contents

Package Content
  • 1 x Power Adpater
