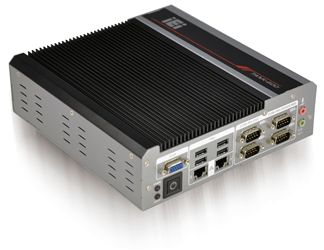

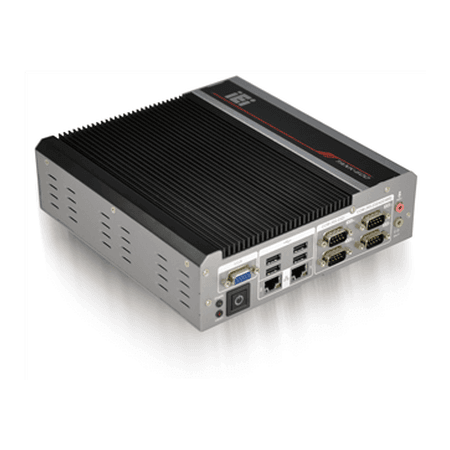

TANK-600-D2550/N2600

Fanless Embedded System,Intel® Cedarview Dual Core Atom™ CPU

End of Life

End of Life Notice

* Effective Date: 2018/09/03

» Intel® Atom™ D2550 1.86 GHz dual-core processor / Intel® Atom™ N2600 1.6 GHz dual-core processor
» Eight COM ports: six RS-232 and two RS-232/422/485
» 6 x USB 2.0
» Dual PCIe GbE LAN for high-speed network applications

Hardware Spec.

Color
Color Black C + Silver
Dimensions
Dimensions 193.4 x 200 x 57
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -20°C ~70°C with air flow (SSD),
Expansion Slots
Expansion Slots 1 x Full size (co-lay mSATA)
1 x Half size
Form factor
SBC Form Factor CPU:
Intel® Atom™ D2550 1.86 GHz
Intel® Atom™ N2600 1.6 GHz
Chipset:Intel® NM10
System Memory:
On-board DDR3 4/2 GB
I/O Interface
I/O Ports 6 x USB 2.0
Ethernet:
2 x RJ-45
PCIe GbE by Realtek 8111E
COM Port
6 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9)
Display:1 x VGA
1 x Line-out, 1 x Mic-in
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5' SATA 3Gb/s HDD/SSD bay
Weight
Weight 2.2 kg/3 kg

Ordering Information

TANK-600-CV-N2600-8C/2G-R11 Extend temperature Fanless embedded system with Intel® Cedarview N2600 1.6 GHz processor dual core CPU, with 2G DDR3 RAM onboard, 1xVGA, Dual GbE LAN, 6xUSB2.0 , 2xRS-232/422/485 , 6 x RS-232, RoHS
TANK-600-CV-D2550-8C/4G-R11 Extend temperature Fanless embedded system with Intel® Cedarview D2550 1.86GHz processor dual core CPU, with 4G DDR3 RAM onboard, 1xVGA, Dual GbE LAN , 6xUSB2.0 , 2xRS-232/422/485 , 6 x RS-232, RoHS

Package Contents

Package Content
  • 1 x Power cord

  • 1 x Power adapter (Meet PSE & ErP)

  • 1 x Wall mount bracket

  • 1 x Screw set
