NANO-PV-D5252

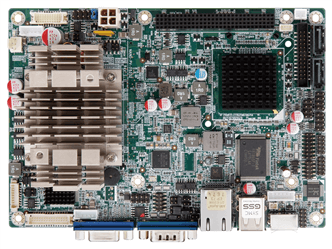

EPIC SBC with Intel® Atom™ D425/N455/D525

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» EPIC SBC with Intel® Atom™ D525/D425/N455 proccessor and DDR3 solution
» 12V only single voltage design for AT/ATX mode
» Support dual LVDS
» Support PCI-104 and PCIe Mini card slot
» Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display
Display VGA (up to 2048x1536(D525) or 1400x1050(N455)@60Hz)
18-bit single-channel LVDS (up to 1366x768(D525) or 1024x768(N455)@60Hz)
24-bit dual-channel LVDS (up to 1920x1080@60Hz)
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -10°C ~ 60°C
Expansion Slots
Expansion Slots 1 x PCI-104 slot
Form factor
Form factor EPIC
I/O Interface
Audio Realtek ALC662 HD codec
Ethernet LAN: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support
I/O Interface
I/O Interface 1 x RS-232
6 x Internal USB 2.0
3 x Internal RS-232
1 x Internal RS-232/422/485
1 x LPT
2 x USB 2.0
Power
Power consumption 12V@2.16A (Intel® Atom™ D525 with 2 GB 1066 MHz DDR3)
12V@2.08A (Intel® Atom™ D425 with 2 GB 1066 MHz DDR3)
12V@1.99A (Intel® Atom™ N455 with 2 GB 1066 MHz DDR3)
Storage
Storage 1 x CF Type II
2 x SATA 3Gb/s
System
Chipset Intel® ICH8M
CPU Intel® Atom™ D525 (1.8GHz, dual-core, 1MB cache)
Intel® Atom™ D425 (1.8GHz, single-core, 512KB cache)
Intel® Atom™ N455 (1.66GHz, single-core, 512KB cache)
Memory Max. One 204-pin 800 MHz DDR3 SDRAM SO-DIMM slot supports up to 4 GB (D525/D425) or 2 GB (N455)

Ordering Information

NANO-PV-D4252-R11 EPIC SBC with Intel Atom D425 1.8GHz,DDR3,VGA/18+ 48bit LVDS,GbE,USB2.0 and SATA II,Audio,RoHS
NANO-PV-D5252-R11 EPIC SBC with Intel Atom D525 1.8GHz,DDR3,VGA/18+ 48bit LVDS,GbE,USB2.0 and SATA II,Audio,RoHS
NANO-PV-N4552-R11 EPIC SBC with Intel Atom N455 1.66GHz,DDR3,VGA/18+ 48bit LVDS,GbE,USB2.0 and SATA II,Audio,RoHS

Package Contents

Package Content
  • 1 x NANO-PV-D4252/N4552/D5252 single board computer

  • 1 x Audio cable

  • 2 x RS-232 cable

  • 1 x Dual port USB cable

  • 1 x Mini jumper pack

  • 1 x KB/MS Y cable

  • 1 x One Key Recovery CD

  • 1 x Power cable

  • 1 x QIG

  • 1 x SATA with 5V output cable

  • 1 x Utility CD
