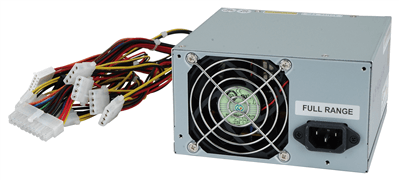

600 W PS/2 ATX Power Supply with ErP

End of Life

End of Life Notice

* Effective Date: 2019/09/25

600 W PS/2 ATX Power Supply with ErP

Hardware Spec.

Dimensions 140 x 150 x 86
Efficiency 85%
MTBF 100,000
Operating temperature -5°C ~ 50°C
Output Connector 1 x 20+4-pin ATX, 1 x 4-pin 12V CPU, 9 x HDD/CDROM, 2 x FDD, 2 x SATA, 1 x Extra +5V(P10)
Storage temperature -40°C ~ 80°C
Watt 600W
Voltage 90~265 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 10A (RMS)@115VAC, 5A (RMS)@230VAC
Inrush Current 40A max. for 115VAC
80A max. for 230VAC
Voltage +3.3V/25A,+5V/25A,+12V1/16A,+12V2/16A,+12V3/16A,+12V4/16A,-12V/0.5A,+5Vsb/4A
Over Voltage Protection 5V: 5.7V-6.5V
12V1 ~ 12V4: 13.3V-16.7V
3.3V: 3.9V-4.5V
Short Circuit Protection +3.3V, +5V, +12V1, +12V2, +12V3, +12V4, 24V
or -12V shutdown and latch off

Ordering Information

ACE-A160A-R11 600W PS/2 ATX Power Supply with ERP;CCL;RoHS
