ACE-R4140AP

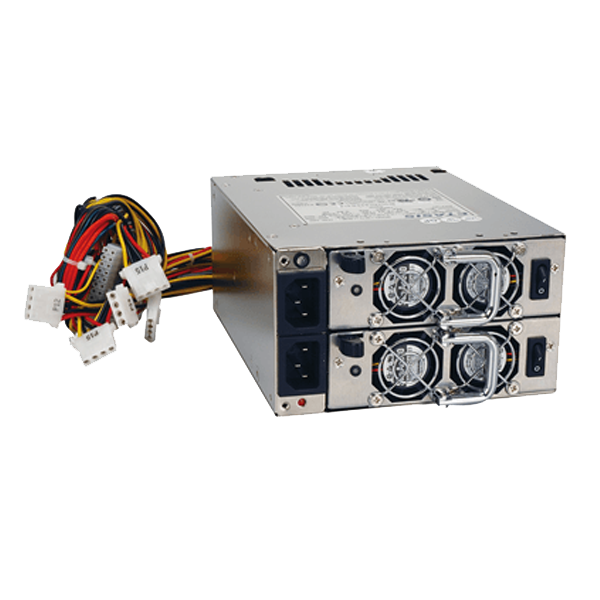

400 W ATX Mini Redundant Power Supply

End of Life

End of Life Notice

* Effective Date: 2020/06/02

400 W ATX Mini Redundant Power Supply

Hardware Spec.

General
Dimensions 150 x 85 x 190 (mm)
Efficiency 65%
MTBF 120,000
Operating temperature 0°C ~ 50°C
Output Connector 1 x 20+4-pin ATX, 1 x 4-pin 12V CPU, 8 x HDD/CDROM, 2 x FDD, 2 x SATA, 1 x Buzzer reset,1 x T.T.L signal, 1 x LED power
Storage temperature -40°C ~ 70°C
Watt 400W
Input
Voltage 90 ~ 264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 8 A (RMS)@ 100 VAC, 4 A (RMS)@ 240 VAC
Inrush Current 34.4A Max for 100 VAC,68A Max for 264VAC
Output
Voltage +5V/25A,+12V/30A,-12V/0.8A,+3.3V/25A,+5Vsb/2A

Ordering Information

ACE-R4140AP1-RS 400W AC-DC ATX Redundant module, for ACE-R4140AP,with PFC,CCL;RoHS
ACE-R4140AP-RS 400W ATX Redundant Power Supply,includes two ACE-R4140AP1-RS,with PFC function;CCL
