ACE-4840APM

400 W PS/2 Medical T ACE-4840APM ype ATX Power Supply

End of Life

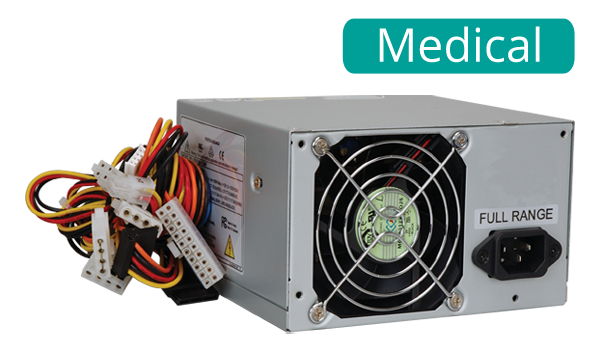

ACE-4840APM Power supply
  • ACE-4840APM Power supply

End of Life Notice

* Effective Date: 2022/04/29

» Internal 8 cm fan
» Meets medical safety standards
» Line input fuse protection
» Output overvoltage protection
» Short circuit protection on all outputs
» Total +12 V output up to 34 A

Hardware Spec.

General
Dimensions 140 x 150 x 86
Efficiency 68%
MTBF 100,000
Operating temperature 0°C ~ 50°C
Output Connector 1 x 20+4-pin ATX, 1 x 4-pin 12V CPU, 5 x HDD/CDROM,2 x FDD, 2 x SATA, 1 x Extra +5V (P10)
Storage temperature -20°C ~ 80°C
Watt 400W
Input
Voltage 90~265 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 8 A (RMS) for 115 VAC, 4 A (RMS) for 230 VAC
Inrush Current 60 A max. for 115 VAC, 100 A max. for 230 VAC
Output
Voltage +3.3V/30A,+5V/30A,+12V1/17A,+12V2/17A,-5V/0.3A,-12V/0.8A,+5Vsb/2A
Over Voltage Protection 5V: 5.7V-6.5V
+12V 13.3V-15.6V
3.3V: 3.7V-4.5V

Ordering Information

ACE-4840APM-RS 400W AC-DC PS/2 ATX Power Supply,meet Medical standard,with PFC;CCL
