ACE-828M

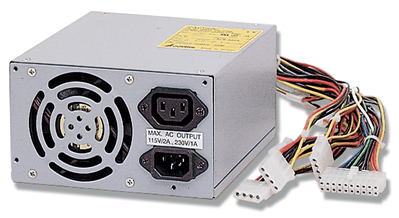

280 W PS/2 ATX Power Supply

End of Life

End of Life Notice

* Effective Date: 2019/12/19

280 W PS/2 ATX Power Supply

Hardware Spec.

General
Efficiency 65%
MTBF 170,000
Operating temperature -20°C ~ 70°C (40°C ~ 70°C derating curve)
Output Connector 1 x 20-pin ATX, 5 x HDD/CDROM, 2 x FDD
Storage temperature -40°C ~ 75°C
Watt 280W
Input
Voltage 90 ~ 130 VAC, 180 ~ 260 VAC Auto Range
Output
Voltage +3.3V/8A,+5V/25A,+12V/10A,-5V/0.5A,-12V/0.5A,+5Vsb/0.72A

Ordering Information

ACE-828M-RS MEDICAL AXT 280W Power Supply,CCL;RoHS
