End of Life Notice
* Effective Date: 2018/04/03

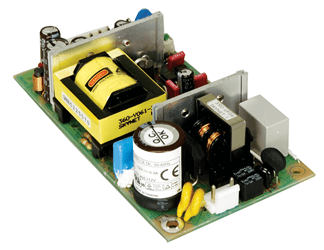

60 W AC-DC Open Frame Medical AT Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 63.5 x 114.3 x 32.4 (mm), 2.5 x 4.5 x 1.28 (inch) |
| Efficiency | 82% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 70°C |
| Output Connector | Optional cable |
| Storage temperature | -40°C ~ 85°C |
| Watt | 60W |
| Input | |
| Voltage | 85 ~ 264 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Input Current | 2 A (RMS)@115V, 1 A (RMS)@230V |
| Inrush Current | 30 A max. for 115VAC, 60 A max. for 230VAC |
| Output | |
| Voltage | +5/4.5A,+12V/4A,-12V/0.3A |
Ordering Information
| ACE-706AM-RS | 60W Medical AT Power Supply;CCL;RoHS |
|---|
