IMB-ARL-H810

micro-ATX motherboard supports high-performance Intel® Core™ Ultra Processors (Series 2)

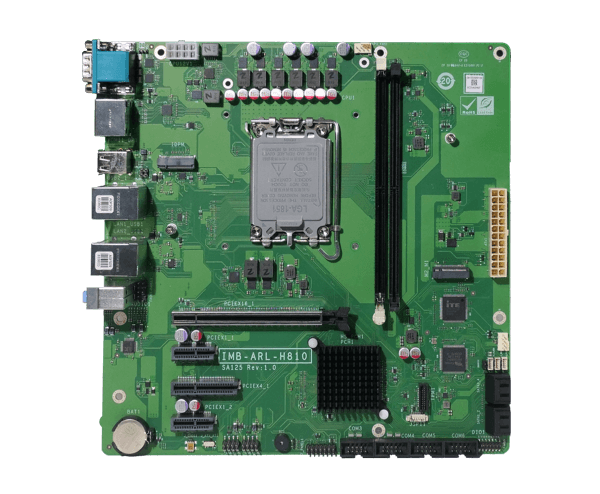

IMB-ARL-H810

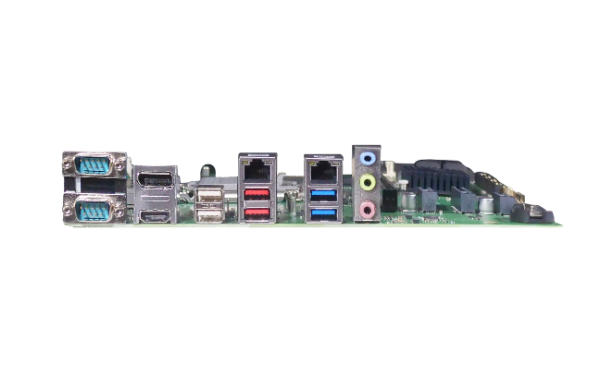

IMB-ARL-H810-IO

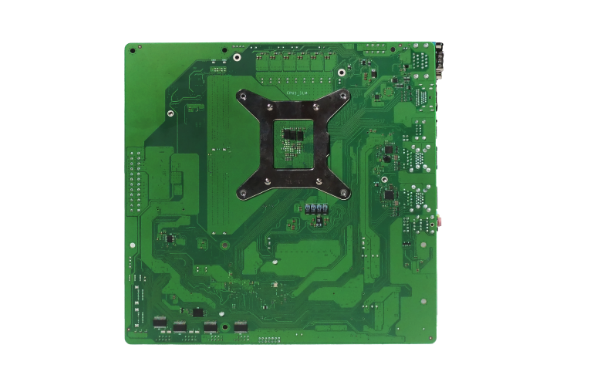

IMB-ARL-H810-back

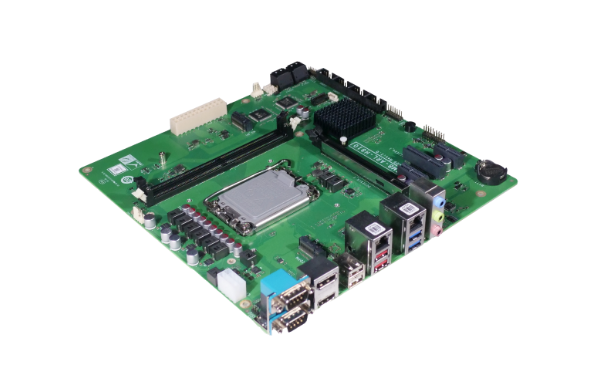

IMB-ARL-H810-side
  • IMB-ARL-H810
  • IMB-ARL-H810-IO
  • IMB-ARL-H810-back
  • IMB-ARL-H810-side
» high-Performance Intel® Core™ Ultra Processors (Series 2)
» Two 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered DIMM (UDIMM & CUDIMM) up to 96GB
» Support dual Intel® 2.5GbE controller
» Support PCIe Gen5 x16, PCIe Gen4 x4, PCIe Gen4 x1 and M.2 M key expansion

Specifications

Hardware Spec.

Form Factor
Form Factor micro-ATX
System
CPU LGA1851 socket supports 15th generation Arrow Lake-S Intel® Ultra Processor (up to 65W TDP CPU)
Chipset Intel®H810
Memory Two 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered DIMM (UDIMM & CUDIMM) (CUDIMM support 6400MHz), supported up to 96GB
Memory Max. 96GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 244mm
Net Weight GW: 1200g / NW: 700g
Storage
Storage 4 x SATA : 6Gb/s
I/O Interface
Display Output 1 x Display Port : DP1.4 (up to 4K@60Hz)
1 x HDMI™ : 2.0 (up to 4K@60Hz)
1 x iDPM : only for IEI module
Ethernet 2 x LAN -
LAN1: Intel® I219-LM controller
LAN2: Intel® I226V 2.5GbE controller
Audio Description: Realtek ALC888S HD codec
2 x Audio Jack (Line-out, Mic-in) on rear IO
1 x Analog audio (2x5 pin)
I/O Interface 1 x DIO : 12-bit digital I/O (2x7 pin)
2 x External RS-232/422/485 : RS-485 support AFC
2 x External USB 2.0 : Type-A
2 x External USB 3.2 Gen1x1 : Type-A (5Gb/s)
1 x I²C : 1x4 pin
4 x Internal RS-232 : 2x5 pin, P=2.54
4 x Internal USB 2.0 : 2xr pin, P=2.54
2 x Internal USB 3.2 Gen2x1 : Type-A (10Gb/s)
Expansion 1 x M.2(NGFF) : M Key 2280 (PCIe Gen4 x1)
2 x PCIe x1 : Gen4
1 x PCIe x16 : Gen5
1 x PCIe x4 : open-end Gen4



Other Features
TPM 1 x TPM 2 x10 pin, support Intel PTT
Power
Power Consumption 3.3V@0.35A, 5V@6.49A, 12V@6.18A, 5VSB@0.27A
(Intel Core Ultra 9 285 with DDR5 4800MT/s U-DIMM 32GB memory)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -10°C ~ 65°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~95%, non-condensing
Watchdog Timer
Watchdog Timer Software Programmable support 1~255 sec. System reset

Ordering Information

IMB-ARL-H810-R10 micro-ATX motherboard supports LGA1851 Intel® 15th Generation Ultra™ processor, DDR5, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

  • 1 x IMB-ARL-H810 single board computer
  • 1 x I/O Shielding
  • 2 x SATA cable
  • 1 x QIG
