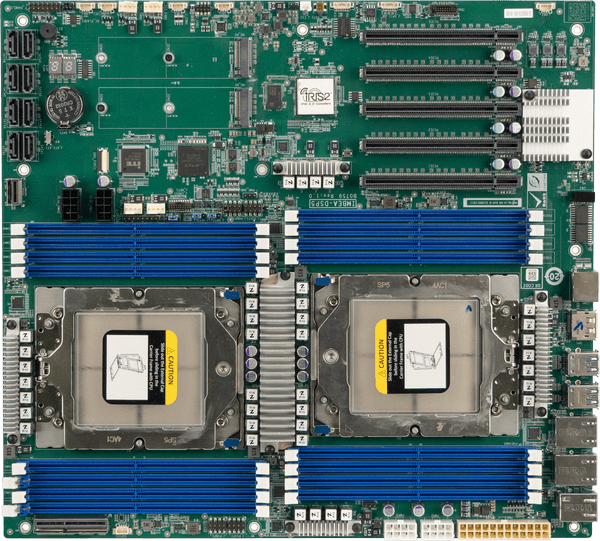

IMBEA-DSP5
» High-Performance AMD dual Processors (Series 9005)
» Support 6400 MHz Dual-Channel DDR5 RDIMM
» 2x 10 GBE RJ45 LAN ports, 4x USB3.2 Gen1 and 1x DP1.1a, 1x 1GBE RJ45
» Support PCIe Gen4 x1, PCIe Gen4 x4, PCIe Gen5 x16 and M.2 M key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | EATX |
| System | |
|---|---|
| CPU | High-Performance Dual AMD EPYC™ 9005 Series Processors (Dual SP5 Socket/cTDP up to 400W) |
| Chipset | AMD EPYC™ 9005 |
| Memory | Total 16 DIMM slot DDR5 6400 ECC RDIMM (8 + 8 DIMM slots) |
| Cooling method / System Fan | 2 x System fan connector (1x4 pin) 2 x CPU fan connector (1x4 pin) |
| Storage | |
|---|---|
| Storage | SATA : 6Gb/s (RAID 0/1/5/10 supported) |
| I/O Interface | |
|---|---|
| Display Output | 1 x Display Port : DP1.1a |
| I/O Interface | External RS-232 |
| Internal USB 2.0 : 2x4 pin, P=2.00 | |
| External USB 3.2 Gen2x1 : Type-A, 5Gb/s | |
| Expansion | PCIe x16 : PCIe Gen5 x16 |
| PCIe x4 : PCIe Gen4 x4 | |
| M.2(NGFF) : M Key (2242/2280, PCIe x2) NVMe support | |
| Power | |
|---|---|
| Power Supply | EATX power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
|---|---|
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
