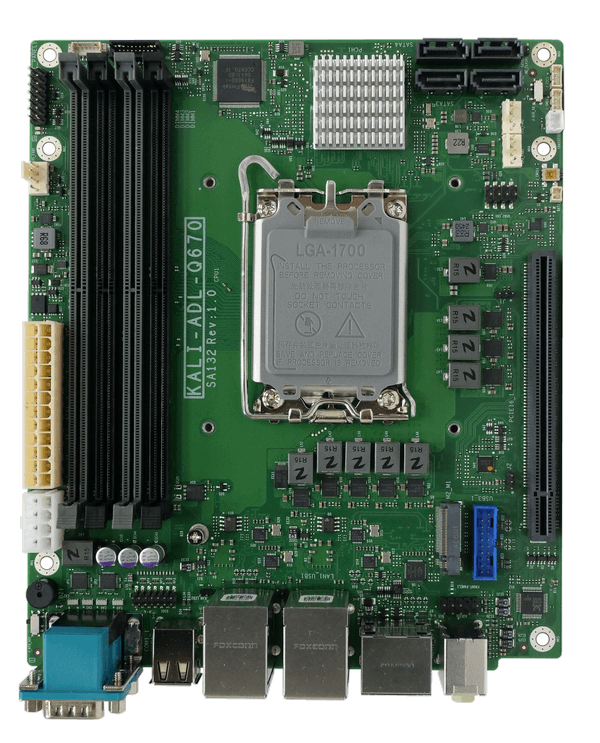

KALI-ADL-Q670

Extended-ITX SBC supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, Dual displays, dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS

KALI-ADL-Q670 IO
KALI-ADL-Q670 Back
KALI-ADL-Q670 Side
  • KALI-ADL-Q670 IO
  • KALI-ADL-Q670 Back
  • KALI-ADL-Q670 Side
1. Extended-ITX SBC supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor
2. Four 288-pin 5200 MHz Dual-Channel DDR5 UDIMMs
3. Double independent display via HDMI and DP
4. Support double Intel® I226V 2.5GbE
5. Support PCIe Gen4 x16 and M.2 M key expansion

Specifications

Hardware Spec.

Form Factor
Form Factor Mini-ITX SBC
System
CPU LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/ Celeron® Processor (up to 125W TDP CPU)
Memory Four 288-pin 5200 MHz Dual-Channel DDR5 UDIMMs
Memory Max. up to 192GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 200mm x 170mm
Net Weight GW: 900g / NW: 400g
Storage
Storage 4 x SATA : 6Gb/s
I/O Interface
Display Output 1 x Display Port : DP 1.4a (up to 4K @60Hz)
2 x HDMI™ : HDMI 2.0b (up to 4K @60Hz)
Ethernet 2 x LAN -
LAN1: Intel® I226V 2.5GbE controller
LAN2: Intel® I226V 2.5GbE controller
Audio HD Audio - Realtek ALC888S HD codec
1 x Audio Jack (Line-out, Mic-in) on rear IO
1 x Analog audio (2x5 pin)
I/O Interface 1 x DIO : 12-bit digital I/O (2x7 pin)
2 x External RS-232/422/485 : RS-485 support AFC
2 x External USB 2.0 : Type-A
4 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s
1 x I²C : 1x4 pin
2 x Internal USB 3.2 Gen1x1 : 2x10 pin, P=2.00, 5Gb/s
Expansion 1 x PCIe x16 : with x16 Signal Gen4
Other Features
TPM 2x10 pin
Power
Power Consumption 3.3V@0.98A, 5V@4.9A, 12V@5.75A, 5VSB@0.36A
(Intel® Core™ i9-12900K CPU with 48 GB 5600 MHz DDR5 memory, EuP mode disabled)
Power Supply Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -10 ~ 60℃
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Card Slot Interface
M.2 1 x M.2 M Key (PCIe X4 gen3 2280)

Ordering Information

KALI-ADL-Q670-R10 Extended-ITX SBC supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, Dual displays, dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS

Package Contents

Package Content

  • 1 x KALI-ADL-Q670 single board computer

  • 1 x I/O Shielding

  • 1 x SATA cable

  • 1 x QIG

Download Specs.
