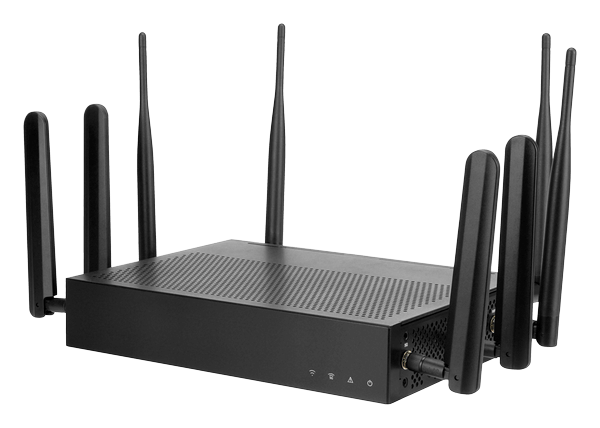

PUZZLE-1100
» Intel® Atom® Amston Lake Processors
» 1 x DDR5 SO-DIMM 4800MHz
» 4 x 2.5GbE LAN
» 2 x USB 3.2 10G Type-A, 1 x Type-C Console
» 1 x M.2 B Key 5G/LTE, 1 x mini PCIe Wi-Fi
» 1 x M.2 B Key SATA SSD 128GB eMMC
Compact, All-in-One Network & Security Appliance for Small Businesses
The PUZZLE-1100 is a compact, high-performance network appliance powered by Intel® Atom® Processor X Series, designed to deliver reliable networking and security solutions for small businesses. With support for up to 25W TDP and fan-based cooling, it provides optimal performance for enterprise-level networking, firewalls, andsecurity applications. The appliance features four 2.5GbE LAN ports for fast connectivity and offers expandable wireless networking through M.2 and miniPCIe slots, enabling 5G/LTE and WiFi 6/6E support. With DDR5 SODIMM memory and 128GB onboard eMMC storage, the PUZZLE-1100 ensures efficient, scalable, and versatile performance in demanding networking environments.
Optimized Performance
for Network Security
High-Speed 2.5GbE LAN Port
5G & High-Speed
WiFi Ready
Expandable Storage &
DDR5 Memory
Optimized Performance for Networking & Security
The PUZZLE-1100, powered by Intel Atom® Processor X Series, supports TDP from 9W to 25W with active cooling*. Featuring Intel® VirtualizationTechnology (VT-x & VT-d), it enables secure virtualization with deviceisolation and protected DMA, ideal for multi-tenant environments. Additionally, Intel® AES-NI accelerates AES encryption, enhancing theperformance of VPNs, firewalls, and intrusion detection systems.
*CPUs over 9W TDP require a heatsink and fan for cooling
High-Speed 2.5GbE LAN Ports for Reliable Connectivity
Featuring four 2.5GbE LAN ports, the PUZZLE-1100 provides up to 2.5 times the speed of traditional Gigabit Ethernet, ensuring smoother and faster network performance. This makes it ideal for high-speed data transfer, secure VPNs, and low latency enterprise networking, reducing bottlenecks in data transmission.
For small businesses, 2.5 GbE offers a cost-effective performance boost over Gigabit Ethernet. It supports speeds up to 2.5 Gbps on existing CAT 5e and CAT 6 cables, allowing users to experience faster network performance for demanding applications without significant cable upgrades.
Wireless-Ready with 5G & High-Speed Wi-Fi
With M.2 B-Key and miniPCIe slots, the PUZZLE-1100 enables seamless 5G/LTE and WiFi 6/6E connectivity. It serves as the perfect wireless network gateway for remote offices, smart buildings, and flexible deployment scenarios, ensuring robust and future-proof wireless performance.
Expandable Storage & Reliable DDR5 Memory
The PUZZLE-1100 comes with 128GB onboard eMMC storage and supports expandable M.2 SATA 2240/2280 storage, offering faster data processing and scaling with your growing network needs. With DDR5 memory, it ensures high-performance memory capacity to handle demanding tasks and network loads.
BMC-Based Support for Remote Access Control
The PUZZLE-1100 supports IEI’s in-house iRIS2 module, which enables BMC functionality for IPMI-based remote management, delivering robust out-of-band management capabilities. With this advanced module, administrators can efficiently monitor, control, and maintain the system —even when the device is powered down or facing critical failures—ensuring seamless operation and minimized downtime.
Ready for Your Business Needs
Network Security
Wireless Network Gateway
SD-WAN
PUZZLE-1100 is an all-in one network security appliance, enabling functions such as firewall and VPN for robust cybersecurity.
PUZZLE-1100 enables seamless 5G/LTE connectivity, ideal for remote offices, smart buildings, and IoT applications.
Designed for small and medium-sized businesses, the PUZZLE-1100 boosts network performance, strengthens security, and lowers operational costs.
I/O Interface
Dimensions (Unit: mm)
Hardware Spec.
| System | |
|---|---|
| CPU | Intel® Amston Lake processors Series Supporting TDP 25W |
| Chipset | Integrated in CPU |
| Memory | SO-DIMM DDR5-4800 |
| Memory Max. | Up to 32G |
| Cooling method / System Fan |
CPU TDP 12W/25W Fan with Heatsink CPU TDP 9W FAN less |
| Physical Characteristics | |
| Rack Height | 1U |
| Dimensions (LxWxH) (mm) | 224.5 x 42.5 xx 170 mm |
| Storage | |
| Storage | 1 x eMMC |
| I/O Interface | |
| Display Output | HDMI™ |
| Ethernet | 4 x LAN |
| I/O Interface | 1 x Console port(s) |
| 2 x External USB 3.2 Gen1x1 | |
| 2 x External USB 3.2 Gen2x1 | |
| Expansion | 2 x M.2(NGFF) |
| 1 x PCIe mini Card Slot | |
| Power | |
| Power Supply | 60W power adapter |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -10°C ~ 50°C |
| Humidity | 5% ~ 90% non-condensing |
| Certifications | |
| Safety & EMC | RoHS, CE/FCC |
| OS Support | |
| OS Support | Linux Ubuntu 24.04 |
Ordering Information
| PUZZLE-1100-x7835RE-R10 | Desktop Network Appliance with Intel x7835RE Processor, 4x 2.5 GbE, 1x USB typc console port, 2x USB 3.2, 1 x HDMI |
|---|---|
| PUZZLE-1100-x7835RE-8G-R10 | Desktop Network Appliance with Intel x7835RE Processor, 4x 2.5 GbE, 1x USB typc console port, 2x USB 3.2, 1 x HDMI, DDR5 SD-DIMM 8GB |
| PUZZLE-1100-x7809C-R10 | Desktop Network Appliance with Intel x7809C Processor, 4x 2.5 GbE, 1x USB type C console port, 2x USB 3.2 |
| PUZZLE-1100-x7809C-8G-R10 | Desktop Network Appliance with Intel x7809C Processor, 4x 2.5 GbE, 1x USB Type-C console port, 2x USB 3.2, DDR5 SD-DIMM 8GB |
| PUZZLE-1100-x7433RE-R10 | Desktop Network Appliance with Intel x7433RE Processor, 4x 2.5 GbE, 1x USB typc console port, 2x USB 3.2, 1 x HDMI |
| PUZZLE-1100-x7433RE-8G-R10 | Desktop Network Appliance with Intel x7433RE Processor, 4x 2.5 GbE, 1x USB typc console port, 2x USB 3.2, 1 x HDMI, DDR5 SD-DIMM 8GB |
| PUZZLE-1100-x7405C-R10 | Desktop Network Appliance with Intel x7405C Processor, 4x 2.5 GbE, 1x USB type C console port, 2x USB 3.2 |
| PUZZLE-1100-x7405C-8G-R10 | Desktop Network Appliance with Intel x7405C Processor, 4x 2.5 GbE, 1x USB Type-C console port, 2x USB 3.2, DDR5 SD-DIMM 8GB |
| PUZZLE-1100-x7203C-R10 | Desktop Network Appliance with Intel x7203C Processor, 4x 2.5 GbE, 1x USB typc console port, 2x USB 3.2 |
| PUZZLE-1100-x7203C-8G-R10 | Desktop Network Appliance with Intel x7203C Processor, 4x 2.5 GbE, 1x USB typc console port, 2x USB 3.2, DDR5 SD-DIMM 8GB |
Package Contents
| Package Content |
|
|---|
