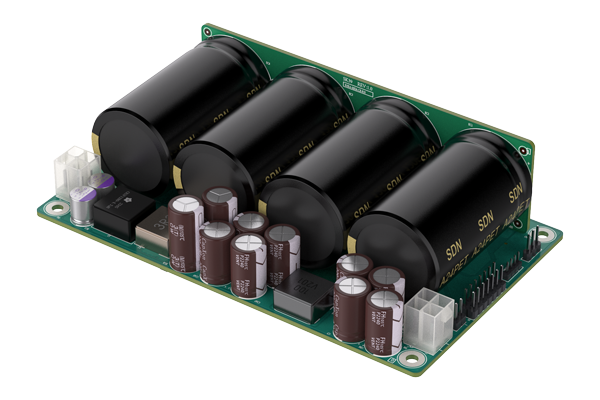

» Four 3.0V/200F supercapacitors
» 12-28V DC Input / 12V DC Output
» Maximum 60W load 2.5V@30°C lasting 20 sec
» -40°C to 60°C wide temperature environment
» 500,000 charge-discharge life cycles
» Long supercapacitor lifetime, up to 10 years
» Intuitive power management software for easier management
» Provide power-off shutdown service through software/hardware
Hardware Spec.
| Environment | |
|---|---|
| Operating Temperature | -40°C ~ 60°C |
| Storage Temperature | -40°C ~ 70°C |
| Input | |
| Voltage | 12-28V DC |
| Output | |
| Voltage | 12V DC |
| General | |
| Watt | 60W |
| Dimensions | 81 x 135 x 33.6 |
| Output Connector |
1 x DC in (2x2 Pin) 1 x DC out (2x2 Pin) 1 x USB2.0 (1x4 Pin) 1 x Debug (1x3 Pin) 1 x FW flash (2x7 Pin) 1 x Power button (1x2 Pin) |
| Weight | |
| Weight | 0.25kg |
Ordering Information
| RHEA-I420A-R10 | 60W DC/DC Supercapacitor backup board, 12-28V Input,12V Output, 4x 200F@3V Supercapacitor, Internal |
|---|
