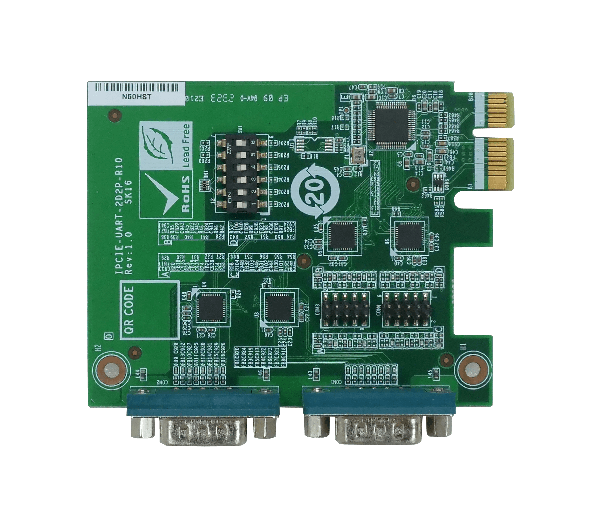

PCIe card supports four RS-232/422/485 Port, RoHs

» PCIe card supports four RS-232/422/485 Port
» 128 bytes transmit/receive FIFO
» High-speed 16C550/16C650/16C750/16C850 compatible UARTs
» Baud rate supports 115.2K, max. up to 1.5M

Hardware Spec.

Form Factor
Form Factor PCI Express® x1
Chipset Fintek F81504 (PCI Express Bridge to Quad
Serial Port),
Fintek F81439 (Buffer/Transceiver Series)
Physical Characteristics
Dimensions (LxWxH) (mm) 70mm x 90mm
Net Weight GW: 120g / NW: 80g
I/O Interface
I/O Interface 2 x External RS-232/422/485 : DB-9
2 x Internal RS-232/422/485 : pin header (2x5 pin, P=2.0)
Operating Temperature 0°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

IPCIE-UART-2D2P-R10 PCIe x1 card supports 4-Port RS-232/422/485, RoHs

Package Contents

Package Content
  • 1 x IPCIE-UART-2D2P card

  • 1 x Half height bracket

  • 2 x D-SUB9 male cable

  • 1 x QIG (Quick Installation Guide)
