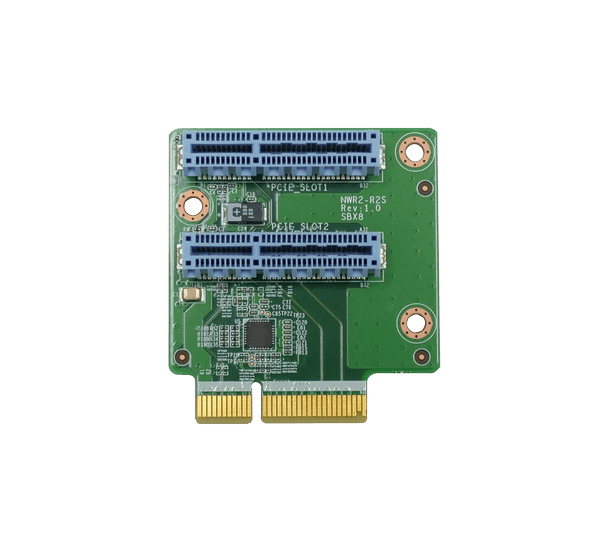

PCIe x4 to two PCIe x2,the right side
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 55 mm * 60 mm |
| I/O Interface | |
| Expansion | 2 x PCIe x4 : x2 signal |
| Environment | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity | 5 ~ 95% non-condensing |
| Card Slot Interface | |
| PCIe | PCIe x4 |
Ordering Information
| NWR2-R2S-R10 | PCIe x4 to two PCIe x2 riser card for WAFER on the right side |
|---|---|
| NWR2-R2S-N-R10 | PCIe x4 to two PCIe x2 riser card for NANO on the right side |
Package Contents
| Package Content |
|
|---|
