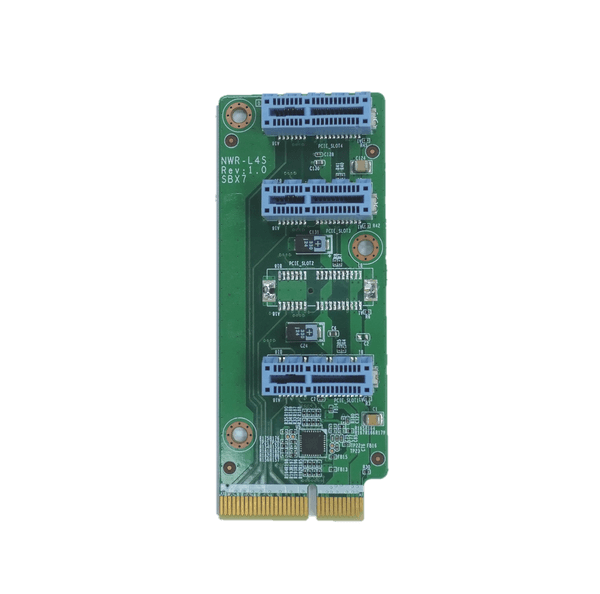

PCIe Expansion Riser Cards for IEI 4” SBC

PCIe x3 to three PCIe x1, on the left side

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 40mm * 100mm
I/O Interface
Expansion 3 x PCIe x1
Operating Temperature -20°C~60°C
Storage Temperature -30°C~70°C
Humidity 5 ~ 95% non-condensing
Card Slot Interface
PCIe PCIe x4

Ordering Information

NWR-L3S-N-R10 PCIe x3 to three PCIe x1 riser card for NANO on the left side

Package Contents

Package Content
  • 1 x NWR-L3S Riser Card

  • 1 x bracket
