PulM-10G4SF-MLX

Mellanox ConnectX-4 Lx based Network Interface Card support Quad 10GbE with 4 x SFP+ by 2 PCIe 3.0 x 4 Interface

End of Life

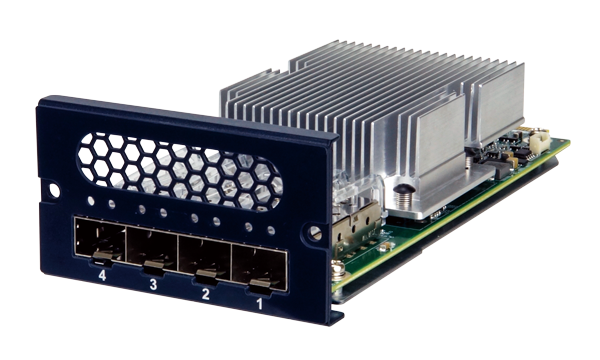

PulM-10G4SF-MLX Mellanox ConnectX-4 Lx based Network Interface Card
  • PulM-10G4SF-MLX Mellanox ConnectX-4 Lx based Network Interface Card

End of Life Notice

* Effective Date: 2022/03/16

• 2 x Mellanox ConnectX-4
• 4 ports 10 GbE SFP+ connector
• 2 PCIe 3.0 x4
• RoHS compliant

Specifications

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
I/O Interface
Ethernet 4 x SFP+
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing



Certifications
Safety & EMC RoHS/CE/FCC compliant
Card Slot Interface
PCIe 2 PCIe 3.0 x4
Card Features
Speed 1GbE/10GbE
Controller Chip Mellanox ConnectX-4

Ordering Information

PulM-10G4SF-MLX-R10 Mellanox ConnectX-4 Lx based Network Interface Card support Quad 10GbE with 4 x SFP+ by 2 PCIe 3.0 x 4 Interface.

Package Contents

  • 1 x PulM-10G4SF-MLX module
  • 1 x L-shaped T10 Plum Wrench
  • 1 x QIG
