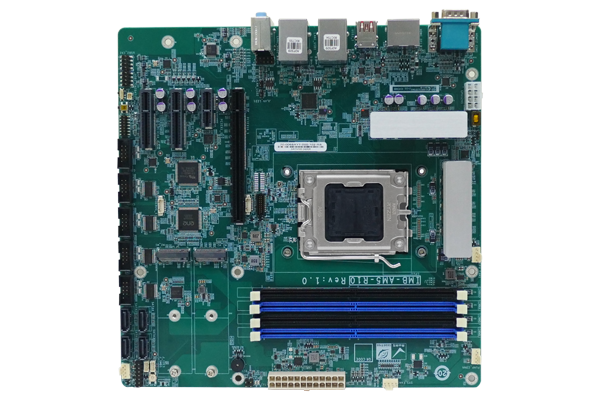

IMB-AM5

micro-ATX motherboard supports AMD 7000 & 8000G PHX1 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

IMB-AM5-IO
IMB-AM5-back
IMB-AM5-right
  • IMB-AM5-IO
  • IMB-AM5-back
  • IMB-AM5-right
» AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
» Support four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 192GB
» Triple independent display via dual HDMI™, DP
» Support Dual Intel® I226V 2.5GbE controller
» Support PCIe Gen4 x1, PCIe Gen4 x4, PCIe Gen4 x16, M.2 M key expansion

IMB-AM5 – microATX Motherboard
Compact Powerhouse for Modern Industrial Applications

In the rapidly evolving world of industrial technology, the demand for powerful, efficient, and compact solutions has never been higher. Our latest microATX motherboard, the IMB-AM5, powered by AMD Ryzen™ 7000 and 8000G PHX1 Series CPUs, offers unparalleled efficiency and performance. This space-saving motherboard is engineered for high performance and energy efficiency, perfectly tailored to meet the rigorous demands of modern industrial applications. With its multi-core processing power, advanced DDR5 memory capabilities, and PCIe Gen4 expandability, the IMB-AM5 is the ideal choice for latency-sensitive applications in Edge AI, automated visual inspection, industrial IoT, and more.

AMD Ryzen™ 7000 & 8000G CPUs

Integrated Radeon™ graphics

CPU Water Cooler
Support

DDR5
Support

Dual 2.5 GbE
LAN Ports

PCIe Gen4
Expansion

Powerful Processing with AMD Ryzen™ 7000
and 8000G PHX1 Series CPUs

Built on the revolutionary "Zen 4" architecture, AMD Ryzen™ 7000 & 8000G CPUs offer a leap in performance and efficiency, which makes IEI’s IMB-AM5 well-suited for wide variety of industrial applications for handling even the most demanding tasks.

High-Performance Cores

The AMD Ryzen™ 7000 series CPUs feature with up to 16 cores and 32 threads, providing the multitasking prowess needed for complex industrial operations.

Integrated Graphics

The IMB-AM5, powered by AMD Ryzen™ 7000 and 8000G series CPUs with integrated graphics, is optimized for visual processing tasks. This design not only saves space but also cuts costs by eliminating the need for additional GPUs. The 8000G series, equipped with Radeon™ 700M series graphics, provides enhanced visual performance, AI capabilities, and power efficiency, enabling advanced computing solutions that boost operational efficiency and drive down costs.

AI Ready

Powered by AMD Ryzen™ 8000G series, the IMB-AM5 features the world's first dedicated Neural Processing Unit (NPU), designed for efficient AI task execution. This integration enables real-time AI processing, making the motherboard perfect for applications requiring advanced machine learning and data analysis capabilities.

Model Cores/Threads Boost / Base Frequency Total Cache TDP
AMD Ryzen™ 9 7950X 16C/32T Up to 5.7GHz / 4.5GHz 80MB 170W
AMD Ryzen™ 9 7900X 12C/24T Up to 5.6GHz / 4.7GHz 76MB 170W
AMD Ryzen™ 7 7700X 8C/16T Up to 5.4GHz / 4.5GHz 40MB 105W
AMD Ryzen™ 5 7600X 6C/12T Up to 5.3GHz / 4.7GHz 38MB 105W
AMD Ryzen™ 7 7700 8C/16T Up to 5.3GHz / 3.8GHz 24MB 65W
AMD Ryzen™ 5 7600 6C/12T Up to 5.1GHz / 3.8GHz 32MB 65W
AMD Ryzen™ 5 5600G 6C/12T Up to 4.4GHz / 3.9GHz 22MB 65W
AMD Ryzen™ 3 5300G 4C/8T Up to 4.2GHz / 3.4GHz 12MB 65W
Model Cores/Threads Graphics Total Cache TDP
AMD Ryzen™ 7
8700G
8C/16T AMD Radeon™ 780M
graphics
24MB 65W
AMD Ryzen™ 5
8600G
6C/12T AMD Radeon™ 760M
graphics
22MB 65W
AMD Ryzen™ 5
8500G
6C/12T AMD Radeon™ 740M
graphics
22MB 65W
AMD Ryzen™ 3
8300G
4C/8T AMD Radeon™ 740M
graphics
12MB 65W
Model Cores/Threads Graphics NPU (AI Engine)
AMD Ryzen™ 7
8700G
8C/16T AMD Radeon™ 780M
graphics
YES
AMD Ryzen™ 5
8600G
6C/12T AMD Radeon™ 760M
graphics
YES
AMD Ryzen™ 5
8500G
6C/12T AMD Radeon™ 740M
graphics
N/A
AMD Ryzen™ 3
8300G
4C/8T AMD Radeon™ 740M
graphics
N/A

Versatile Cooling Solutions for Enhanced Reliability

The IMB-AM5 addresses diverse industrial cooling needs with versatile options. It includes a 4-pin connector for standard CPU fans, dual 4-pin connectors for system fans, and an AIO pump connector for efficient liquid cooling—ideal for high-performance CPUs, demanding applications, or quiet environments. Whether you require simple air cooling or advanced liquid cooling, our microATX motherboard provides the flexibility to choose the best solution for your application.

Note: Please note that the CPU liquid cooler depicted in the image is not included in the package and is shown for illustrative purposes only.

Tailored Performance
Ryzen™ 7000 and 8000G Series - Find Your Perfect Fit!

AMD Ryzen™
7000 Series

V.S

AMD Ryzen™
8000G Series

Up to 16C/32T Cores/
Threads
Up to 8C/16T
Zen 4 Architecture Zen 4
RDNA 2-based GPU Integrated Graphics Radeon™ 700M series graphics
N/A NPU (AI engine) Inclusion Y
  • ● High Performance Computing (HPC)
  • ● Large-scale data processing
  • ● Virtual environments
Application
  • ● AI-driven edge devices
  • ● Machine vision
  • ● Medical imaging devices

Exceptional Memory and Networking Capabilities

Dual-Channel DDR5 5200

Enables lightning-fast memory speeds and high densities with DDR5- 5200, featuring on-die ECC for a significant bandwidth boost in data-intensive tasks. This enhancement improves multitasking capabilities and ensures reliable operation in mission-critical environments.

2.5GbE LAN Ports

The IMB-AM5 features dual high-speed 2.5GbE LAN ports, providing faster data transfer rates over the network. This is particularly beneficial for environments requiring large data transfers or networked computing tasks.

Versatile Expansion & Storage Options

The IMB-AM5’s expansion and storage options provide the flexibility needed to adapt to wide range of industrial scenarios

Expansion Slots

The motherboard comes with one PCIe Gen4 x 16, two PCIe Gen4 x 4 slots and one PCIe Gen4 x 1 slot, allowing for installation of additional high-end graphics cards, NICs, accelerator cards, etc.,
This flexibility allows your system to be customized for specific modern industrial applications, ranging from advanced graphics processing to additional peripheral connections. * When equipped with the Ryzen™ 8000G PHX1, the Slot 3 PCIe Gen4 x4 is disabled.

Storage Support

The IMB-AM5's 4 x SATA 6Gb/s ports and 2 x M.2 M key slots provide extensive connectivity for traditional hard drives, SSDs, and NVMe SSDs, boosting system responsiveness and speed for modern industrial applications. * When equipped with the Ryzen™ 8000G PHX1, the M.2 M Key (PCIe x4) is disabled.

Advanced Triple Independent Display

Visual output is crucial for monitoring and control systems in industrial environments, and the IMB-AM5 delivers exceptional display capabilities. Capable of driving displays at 4K resolution, the IMB-AM5 supports triple independent displays via DisplayPort (DP) and HDMI™. This feature provides versatile visual output options, enabling detailed monitoring and control across multiple screens.

Applications

Our microATX motherboard, the IMB-AM5, is ideally suited for a wide range of industrial applications. With its multi-core processing capabilities, integrated graphics, and neural processing units, it delivers exceptional edge performance, setting new standards in the industry.

Machine Vision
& AOI

Industrial IoT

Robotics & Control
Systems

AI & Machine
Learning

Optional Accessories

Cable

CPU Fan

19800-003100-100-RS

Dual-port USB cable with bracket

Length: 300mm

Pin header: Two 4-pin (1x4), p=2.54 mm

32205-000702-200-RS

RS-232 cable

Length: 230mm

Pin header: 10-pin (2x5), p=2.54 mm

CB-USB02A-RS

19100-000344-00-RS

65W CPU fan

Heatsink: 58 x 45.5 x 71.81 (mm)

Fan: 60 x 60 x 25.4 (mm)

32205-002700-200-RS

19100-000345-00-RS

65W CPU fan

Heatsink: 72 x 70 x 25.5 (mm)

Fan: 70 x 70 x 15.3 (mm)

CB-USB02A-RS

19100-000348-00-RS

120W CPU fan

Heatsink: 98 x 72 x 120 (mm)

Fan: 92 x 92 x 25 (mm)

CB-USB02A-RS

19100-000338-00-RS

170W CPU fan

Heatsink: 120 x 60 x 150.7 (mm)

Fan: 120 x 120 x 25 (mm)


Hardware Spec.

Form Factor
Form Factor Micro-ATX
System
CPU AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
Memory Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, supported up to 192GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x PUMP fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 244mm
Net Weight GW: 1200g / NW: 700g
Storage
Storage 4 x SATA : 6Gb/s
I/O Interface
Display Output 2 x HDMI™ : up to 4096 x 2304@30Hz
1 x Display Port : up to 4096 x 2304 @60Hz
Ethernet 2 x LAN -
LAN1: Intel® I226-V 2.5GbE controller
LAN2: Intel® I226-V 2.5GbE controller
Audio 1 x HD Audio : 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin)
I/O Interface 1 x External RS-232/422/485 : RS-485 support AFC
4 x Internal RS-232 : 2x5 pin, P=2.54
1 x Internal RS-232/422/485 : RS-485 support AFC, 2x5 pin, P=2.54
4 x Internal USB 2.0 : 2x4 pin, P=2.54
1 x DIO : 12-bit digital I/O (2x7 pin)
2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s
4 x External USB 3.2 Gen1x2 : Type-A, 5Gb/s
Expansion 1 x PCIe x16 : PCIe x16 (Slot1) with x8 Signal Gen4
2 x PCIe x4 : PCIe x4 open-end Gen4 (slot3 will disable with Ryzen™ 8000G PHX1)
1 x PCIe x1 : PCIe x1 (Slot 2, PCIe Gen4 x1 signal)
2 x M.2(NGFF) -
1 x M.2 M Key (2242/2280, PCIe x4) NVMe support (disable with Ryzen™ 8000G PHX1)
1 x M.2 M Key (2242/2280, PCIe x2) NVMe support (NVME RAID 0/1 support)
Power
Power Consumption 3.3V@1.66A, 5V@9.29A, 12V@16.33A, 5VSB@0.07A
(AMD Ryzen™ 9 7950X 170W with Transcend JM5600ALE-16GB X4 memory, EuP mode disable)
Power Supply Support AT/ATX mode
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~95%, non-condensing

Ordering Information

IMB-AM5-R10 micro-ATX motherboard supports AMD 7000&8000G PHX1 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content
  • 1 x IMB-AM5 single board computer

  • 1 x I/O Shielding

  • 1 x SATA cable

  • 1 x QIG
