HYPER-RK3566

Pico-ITX SBC with RK3566, 2/4GB LPDDR4/4X, 16/32GB eMMC, HDMI™2.0, MIPI DSI, LVDS, 1 x 1GbE RJ45, 1 x USB3.0, 3 x USB2.0, 2 x (RS232+RS485), Options: WIFI5/6 + BT, 12V DC IN, Debian 10 / Android 12, RoHS

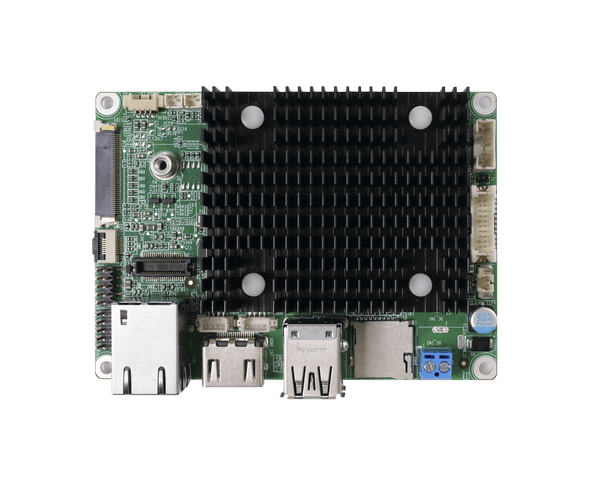

HYPER-RK3566 Front
HYPER-RK3566 IO
HYPER-RK3566 Back
HYPER-RK3566 Side
  • HYPER-RK3566 Front
  • HYPER-RK3566 IO
  • HYPER-RK3566 Back
  • HYPER-RK3566 Side
» Pico-ITX SBC with RK3566
» Onboard 2/4GB LPDDR4/4X
» Onboard 16/32GB eMMC
» Support 1 x USB3.0 Host Type A
» Support 1 x USB2.0 OTG Type A
» Support 2 x USB2.0 Host Connector
» Display Support 1 x HDMI™2.0, MIPI and LVDS
» Support 1 x 1GbE RJ45
» Support 2 x (RS232+RS485)
» Support 8 bit-GPIO
» Options: WIFI5/6 + BT
» 12V DC IN
» Debian10 / Android 12, RoHS

Specifications

Hardware Spec.

System
CPU Rockchip RK3566 (Quad-code Cortex-A55 Up to 1.8Ghz)
Memory 2/4GB LPDDR4/4X
Memory Max. Up to 8GB (Option: 2GB Sku only support Linux)
Supported OS Android 12.0, Linux Debian 10 (kernel 4.19)
Physical Characteristics
Dimensions (LxWxH) (mm) 100mm x72mm
Net Weight 95g
Storage
Storage eMMC : 16/32GB Emmc NAND FLASH (Option:16GB Sku only support Linux)
1 x SD/MicroSD card : Micro SD Slot
I/O Interface
Display Output 1 x HDMI™ (Type A) -
Android OS supports Dual-screen display of the same content;
Debian OS supports single-screen display;
1 x LVDS (SMD;30PIN;180°;P=1.25MM) -
Android OS supports Dual-screen display of the same content;
Debian OS supports single-screen display;
1 x MIPI DSI : 4 Lanes (ZIF FPC; SMD; 40PIN; 180°, P=0.5mm) -
Android OS supports Dual-screen display of the same content;
Debian OS supports single-screen display;
Ethernet 1 x LAN : 1GbE RJ45 by YT8521
Audio 1 x Mic : 2PIN socket for MIC, Connectors; Wire toBoard; WAFER 1*2PIN; DIP; 2PIN; 180°; P=1.25mm
1 x Speaker : 2PIN socket for speaker (1.3W); WAFER 1*2 with frame; SMD; 2PIN; 180°; P=1.25mm
I/O Interface 1 x Console Port
2 x External RS-232/422/485 : RS-232+RS485, 2 x 5Pin Pin Header
1 x External USB 2.0 : OTG Type A
1 x External USB 3.2 Gen1x1 : USB 3.0 Gen1 HOST TypeA
GPIO : 8-bit (4 in/4 out,pin header)
1 x I²C : TP-I2C (8pin 2.0mm FPC)
2 x Internal USB 2.0 : HOST with 1 x 4 FRAME,180°, P=1.25mm
Wireless
Wi-Fi (Optional) Wi-Fi 5/6 (B to B interface with IEI wireless module)
Bluetooth (Optional) Bluetooth V5.0 (B to B interface with IEI wireless module)
Power
Input 12V DC IN
Environment
Operating Temperature 0°C ~ 60°C with air flow
Storage Temperature -20°C ~ 70°C
Humidity 10% ~ 90%, no-condensing
Certifications
Safety & EMC EMC Class A
Watchdog Timer
Watchdog Timer Yes

Ordering Information

HYPER-RK3566-R10 PICO-ITX SBC with RK3566, 4GB LPDDR4/4X，32GB eMMC, HDMI™2.0, MIPI DSI, LVDS, 1x1GbE RJ45, 1xUSB3.0, 3 x USB2.0, 2x(RS232+RS485), Options:WIFI5/6+BT, 12V DC IN, Debian10, ROHS
HYPER-RK3566-A-R10 PICO-ITX SBC with RK3566, 4GB LPDDR4/4X，32GB eMMC, HDMI™2.0, MIPI DSI, LVDS, 1x1GbE RJ45, 1xUSB3.0, 3 x USB2.0, 2x(RS232+RS485), Options:WIFI5/6+BT, 12V DC IN, Android12, ROHS
HYPER-RK3566-2/16GB-R10 PICO-ITX SBC with RK3566, 2GB LPDDR4/4X，16GB eMMC, HDMI™2.0, MIPI DSI, LVDS, 1x1GbE RJ45, 1xUSB3.0, 3 x USB2.0, 2x(RS232+RS485), Options:WIFI5/6+BT, 12V DC IN, Debian10, ROHS

Package Contents

Package Content

  • 1x HYPER-RK3566 single board
