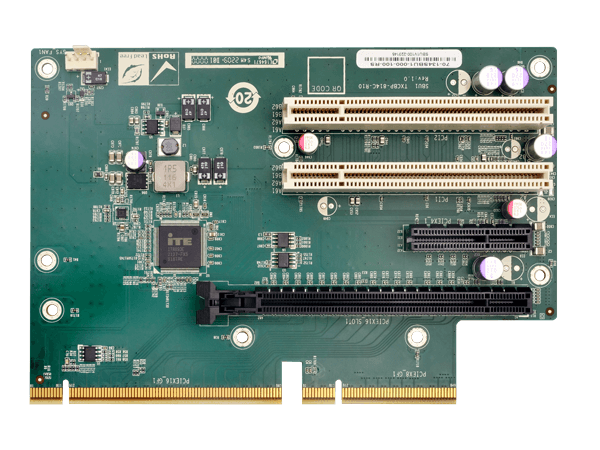

» 4-slot backplane for TANK-XM81 series expansion chassis
» One PCIe x16 & one PCIe x4 & two PCI Slot
» One system fan connectors
» Compatible chassis: TXC-XM81-4S-R10

Hardware Spec.

Form Factor
Form Factor TANK-XM81 series customization
System
Cooling method / System Fan 1 x 4-pin (1x4)
Physical Characteristics
Mounting TXC-XM81-4S
Dimensions (LxWxH) (mm) 175.8 x 119
I/O Interface
Expansion 2 x PCI Slot
1 x PCIe x16
1 x PCIe x4

Ordering Information

TXCBP-XM81-4C-R10 Tank 81 Series Expansion Peripheral Card, backplane module, 4 Slot, 1xPCIe*16&2xPCI&1xPCIe*4
