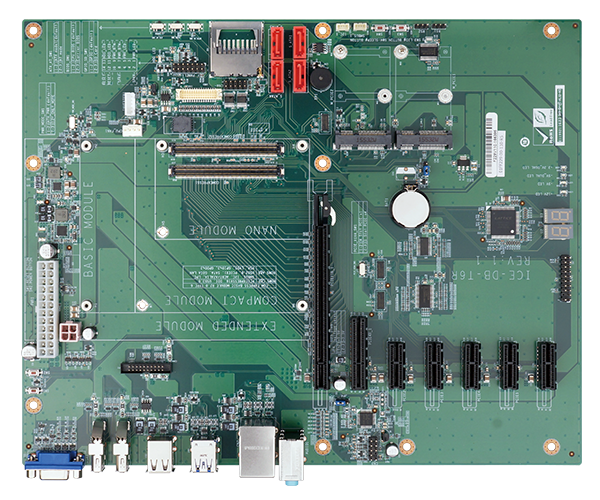

ICE-DB-T6R

Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1

» Intel® 22nm Atom™ or Celeron® on-board SoC supported
» Intel® HD Graphics Gen7 integrates high-performance graphics and media processing
» Supports 1333/1066 MHz DDR3L (1.35V) memory, up to 8 GB
» Supports one analog CRT, one 24-bit dual-channel LVDS, and one DDI
» Optional soldered down 4 GB SSD
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Storage
Storage 4 x SATA
1 x SD/MicroSD card
I/O Interface
Display Output 1 x VGA
2 x Display Port
1 x LVDS :18/24-bit single or dual-channel (with PWM back light controller)
1 x iDP
Audio Description: Realtek ALC662 HD Audio codec
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 1 x PS/2
Expansion 1 x PCIe x16
1 x PCIe x4
5 x PCIe x1
2 x PCIe mini Card Slot :with mSATA support,colay with SATA 4
Other Features
TPM 2x10 pin

Ordering Information

ICE-DB-T6R-R10 Base Board for COM Express Type 6 Module COM.0 Rev. 2.1,support PICMG EAPI R1.0
