DRPC-330-A7K

Fanless DIN-Rail Embedded System with Marvell® ARMADA® 88F7040 Solution

End of Life

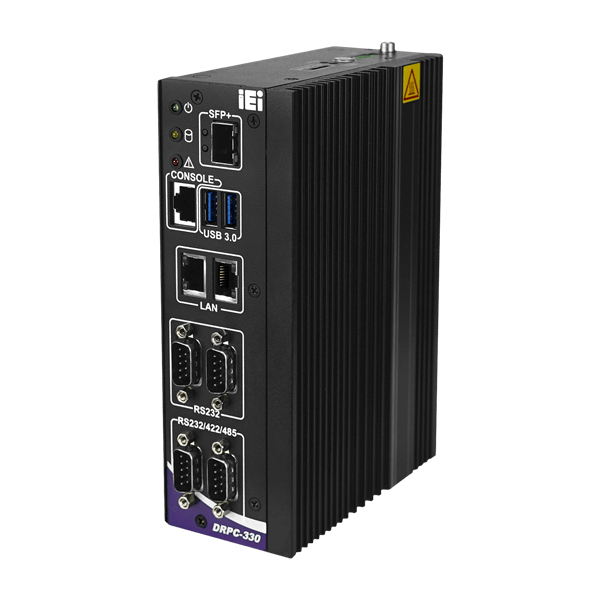

DRPC-330-A7K Fanless DIN-Rail Embedded System with Marvell® ARMADA® 88F7040 CPU
DRPC-330-A7K Fanless DIN-Rail Embedded System with Marvell® ARMADA® 88F7040 CPU
DRPC-330-A7K Fanless DIN-Rail Embedded System with Marvell® ARMADA® 88F7040 CPU
  • DRPC-330-A7K Fanless DIN-Rail Embedded System with Marvell® ARMADA® 88F7040 CPU
  • DRPC-330-A7K Fanless DIN-Rail Embedded System with Marvell® ARMADA® 88F7040 CPU
  • DRPC-330-A7K Fanless DIN-Rail Embedded System with Marvell® ARMADA® 88F7040 CPU

End of Life Notice

* Effective Date: 2021/08/27

» Marvell® ARMADA® 88F7040
» Supporting 10GbE SFP+
» Multiple COM Ports with isolation
» Multiple expansion slots
» Wide power input 9~36V

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Marvell® ARMADA® 88F7040
  • Chipset:
    SoC
  • System Memory:
    1 x On-board DDR4 2400 (4GB pre-installed)
  • Power:
    Terminal block: 9 ~ 36V DC
    Consumption: 36V @ 0.86A (Marvell® ARMADA® 88F7040 CPU with 4GB 2400 MHz DDR4 on-board memory)
  • Reliability:
    Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
    Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)
    Safety/EMC – CE/FCC
I/O Interface
I/O Ports
  • 2 x USB 3.2 Gen1
  • Ethernet:
    2 x RJ-45:
    2 x GbE by Marvell® 88E1512
    1 x SFP+:
    1 x 10GbE by Marvell® 88F7040
  • COM Port:
    1 x Console (RJ45)
    2 x RS232/422/485 with AFC (DB9 with 2.5kV isolation)
    2 x RS232 (DB9 with 2.5kV isolation)
  • TPM:
    1 x TPM 2.0 (optional)
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A-key (PCIe*1/USB 2.0)
    1 x 2280 B-key (PCIe*1)
    1 x 2242/80 B-key with SIM card slot (PCIe*1/USB 3.0/USB 2.0)
System
Cooling method / System Fan Fanless
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
1 x Clear CMOS
Indicators 1 x Power LED
1 x HDD LED
1 x Storage LED



Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 58.75 x 130 x 174 mm
Weight
Weight 1.3KG / 1.45KG
Environment
Operating Temperature -20 ~ 60°C with air flow
Humidity 10 ~ 95% non condensing

Ordering Information

DRPC-330-A7K-A1/4G-R10 Fanless system with Marvell Armada 7040 processor, 4GB DDR4 on-board memory, two 1GbE, one 10GbE via SFP+(without tranceiver), multiple M.2 expansions, COM, 9~36VDC, RoHS

Package Contents

  • 1 x Din-rail mounting kit
  • 1 x Screw kit
