IDS-310-AL

Fanless Ultra Compact Size Digital Signage System

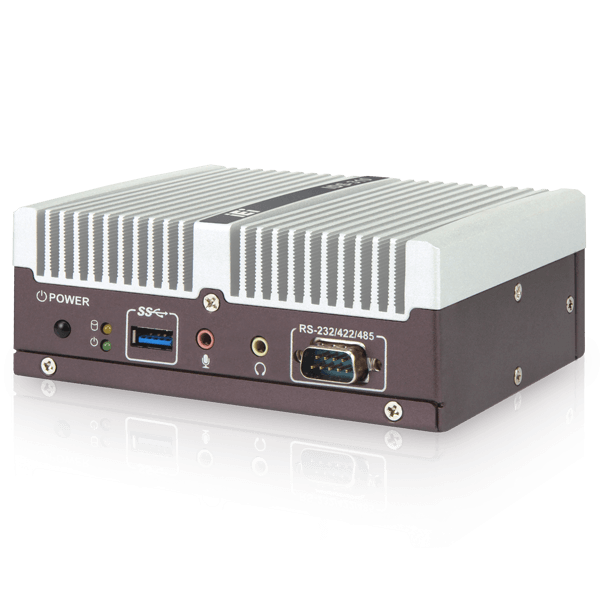

IDS-310-AL Fanless Ultra Compact Size Digital Signage System
IDS-310-AL Fanless Ultra Compact Size Digital Signage System
  • IDS-310-AL Fanless Ultra Compact Size Digital Signage System
  • IDS-310-AL Fanless Ultra Compact Size Digital Signage System
» Fanless digital signage system with Intel® 14nm Apollo Lake on-board SoC
» Triple HDMI displays up to 4K resolution
» Two GbE LAN ports
» Full-size PCIe Mini slot and M.2 A-key slot for expansion

Fanless and Palm-size Digital Signage Platform

The IDS-310-AL is a fanless, compact-size digital signage system with Intel® Celeron® series processor. It could be installed in applications with limited space, and can avoid dust easily. It features triple HDMI ports to support 4K resolution for displaying independent content, like advertising promotion, restaurant menu or real-time traffic information. The IDS-310-AL also supports multiple I/O ports, including two LAN ports, three USB 3.2 Gen 1 ports, audio jacks and COM port. No doubt it has high flexibility; the IDS-310-AL reserves one M.2 A-key slot for Wi-Fi and Bluetooth module, and one full-size PCIe Mini slot for mSATA, I/O cards or 3G/4G modules. Moreover, optional module layer design is supported for extra 2.5" HDD storage expansion. This system can be your best choice for digital signage applications.

Dual CPU SKU for Different Requirement

The IDS-310 series has two SKUs, one is integrated with a dual-core CPU, Intel® Celeron® N3350, and one with a quad-core CPU, Intel® Celeron® J3455, to offer different computing performance for various requirements. Both of the platforms support wide range operating temperature from -20°C to 60°C , and adopt same hardware design to reduce product verification time and time-to-market.

  • IDS-310-AL Embedded System CPU Performance-1
  • IDS-310-AL Embedded System CPU Performance-2

Small but Complete in Every Detail

The IDS-310 features three independent HDMI display ports supporting up to 4K resolution, and its palm-size design allows it to be installed in an extremely limited space. It supports two LAN ports for advanced management, network security or surveillance. Moreover, three USB 3.2 ports and COM ports enable connection to a wide range of peripherals like RFID payment system, barcode reader, credit card reader or receipt printer. The IDS-310 also provides one M.2 A-key slot for Wi-Fi and Bluetooth modules, and one full-size PCIe Mini slot for 3G/4G modules.

palm-size ultra compact-size embedded system

Modular Design for High Expansion

The IDS-310 supports SATADOM as a basic storage option. For requirements of larger storage capacity, its modular design offers dual-layer chassis to contain a 2.5" HDD for more flexible HDD/S SD selection.

Modular Design mini embedded box pc for High Expansion

Advanced Multi-Display Digital Signage

Advanced multi-display digital signage can make people easily and quickly get the information they need. The IDS-310 is designed with small form factor, allowing it to be installed in narrow spaces, such as the wall or ceiling of an aisle. With its rich I/O design, it can be connected with different devices to offer various functions, such as payment system, IP camera, card readers and so on. Furthermore, people counting and video promotion display can be set up with IP camera via USB or LAN ports to deliver information in real-time, and it can also maintain service quality and safety of customers to avoid unnecessary injuries. Enterprises can not only monitor the live images of specific entrances and exits, but use these data to analyze consumer activities daily, weekly, monthly or within certain periods, as a reference for operation management.

Traffic-real-time-application
Video wall application
Ai crow management application

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel® Celeron® J3455 (up to 2.3GHz, quad-core, TDP 10W)
    Intel® Celeron® N3350 (up to 2.4GHz, dual-core, TDP 6W)
  • Chipset:
    SoC
  • System Memory:
    1 x 204-pin DDR3L SO-DIMM, 4 GB pre-installed (system max: 8GB)
  • Power:
    Input : 12V DC-in
    Consumption:
    12V @ 2.2A (Intel® Celeron® J3455 with 4GB memory)
    12V @ 1.9A (Intel® Celeron® N3350 with 4GB memory)
  • Reliability:
    Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis
    Operating Vibration: MIL-STD-810G 514.6C-1 (mSATA)
    Safety/EMC: CE/FCC/BSMI
I/O Interface
I/O Ports
  • Display:
    3 x HDMI (up to 3840x2160@30Hz)
  • 3 x USB 3.2 Gen1
  • Ethernet:
    2 x RJ-45 PCIe GbE by RTL8111H controller
  • COM Port:
    1 x RS-232/422/485 with AFC (DB-9)
  • Audio:
    1 x Mic in, 1 x Line out
Expansion Slots
Expansion Slots M.2:
1 x 2230 A key (PCIe x1/ USB 2.0)
PCIe Mini:
1 x Full-size (PCIe/ USB 2.0/ SATA) with SIM card slot
System
Cooling method / System Fan Fanless
Indicator&Buttons
Buttons 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators HDD
Power
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Brown & Silver
Dimensions
Dimensions J1: 137 x 102.8 x 52.1 mm
N1:137 x 102.8 x 38.1 mm
Weight
Weight J1: 950g/1.7kg
N1:680g/1.4kg
Environment
Operating Temperature -20°C ~ 60°C with air flow (mSATA)
Humidity 10% ~ 95%, non-condensing

Ordering Information

IDS-310-AL-N1/4GB-R10 Fanless embedded system with Intel® Celeron® N3350 1.1GHz (up to 2.4GHz, dual dore, TDP 6W), pre-installed 4GB DDR3L memory, triple HDMI display, 12V DC and RoHS
IDS-310-AL-J1/4GB-R10 Fanless embedded system with Intel® Celeron® J3455 1.5GHz (up to 2.3GHz, quad dore, TDP 10W), pre-installed 4GB DDR3L memory, triple HDMI display, 12V DC and RoHS

Package Contents

Package Content
  • 1 x VESA 75/100 Mounting kit

  • 1 x Power Adapter

  • 1 x Power Cord


0
