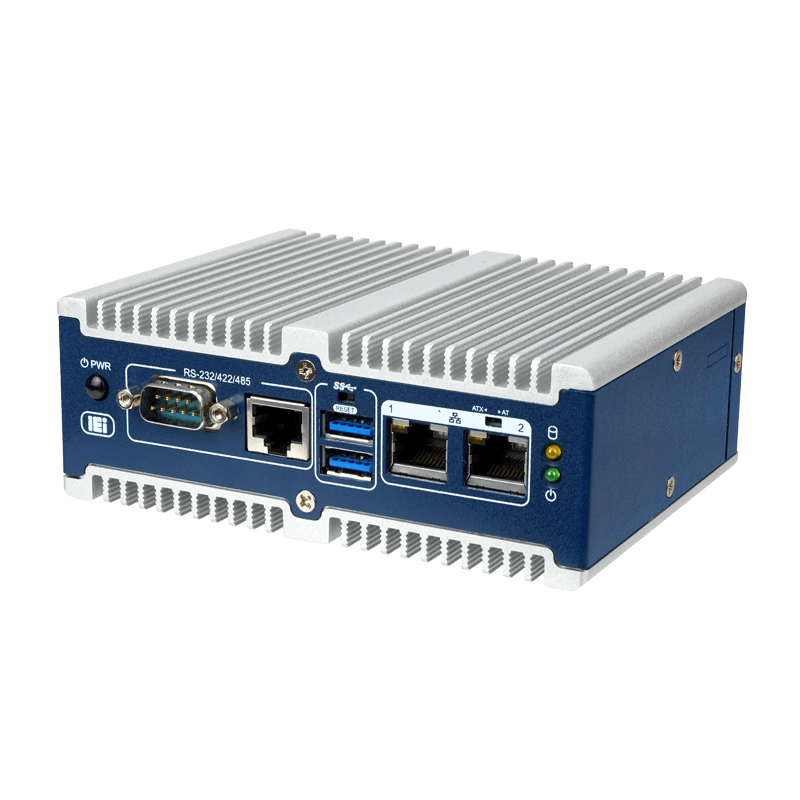

ITG-100AI

Fanless Ultra Compact Size AI Embedded System

  • Overview
    ● Intel®Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)
    ● Two GbE LAN ports
    ● Two RS-232/422/485
    ● M.2 A-key slot for WiFi Module
    ● Pre-installed Mustang-MPCIE-MX2, 2 x Intel Myriad X VPU for AI deep learning workload consolidation

  • Features

    Key Features of Intel® Movidius™ Myriad™ X VPU

    ● Native FP16 support

    ● Rapidly port and deploy neural networks in Caffe and Tensorflow formats

    ● End-to-End acceleration for many common deep neural networks

    ● Industry-leading Inferences/S/Watt performance

    Ultra-compact Size

    Space limitation is one of the constraints commonly seen in today’s industrial environment. Under tight restrictions, the ITG-100AI-AL not only provides palm-sized design to meet the space requirement, but also comes with adequate basic I/O interfaces for various applications.

    Application

    The ITG-100AI is pre-installed with a Mustang-MPCIE-MX2 AI accelerator card, which includes two Intel® Movidius™ Myriad™ X VPU, to provide a flexible AI inference solution. VPU is short for vision processing unit. It can run AI faster, and is well suited for low power consumption applications such as surveillance, retail and transportation. With the advantage of power efficiency and high performance to dedicate Deep Neural Networks (DNN) topologies, it is perfect to be implemented in AI edge computing device to reduce total power usage, providing longer duty time for the rechargeable edge computing equipment.

    Surveillance_ITG_100AI

    Surveillance.

    Retail_ITG_100AI

    Retail



    Transportation_ITG_100AI

    Transportation



    Fully Integrated I/O

    Fully_Intergrated_I/O_ITG_100AI

    Dimensions (Unit: mm)

    Dimensions_ITG_100AI

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor●CPU:
      Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)
      ●Chipset:
      SoC
      ●System Memory:
      1x 204-pin DDR3L SO-DIMM slot pre-installed with 8 GB memory
      ●Power:
      Input : 2-pin terminal block: 9~36V DC-in
      ●Reliability:
      Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
      Operating Vibration: MIL-STD-810G 514.6C-1
      Safety/EMC: CE/FCC
      I/O Interface
      I/O Ports●USB: 2 x USB 3.0
      ●Ethernet:2 x RJ-45 PCIe GbE by Intel® I211 controller
      ●COM Port:2 x RS-232/422/485 (DB-9/RJ45)
      ●Display:1 x VGA
      Expansion Slots
      Expansion SlotsM.2:
      1 x M.2 A key 2230 (PCIe by 1, USB2.0)
      PCIe Mini:
      Pre-installed Mustang-MPCIE-MX2
      System
      Cooling method / System FanFanless
      Drive BaysSATADOM: Pre-installed 128GB
      eMMC: 1 x eMMC 5.0 support (up to 32GB optional)
      Micro SD: 1 x Micro SD Slot
      Indicator&Buttons
      Buttons1 x Power Button
      1 x Reset Button
      1 x AT/ATX Switch
      Indicators1 x LED for HDD (Yellow)
      1 x LED for Power (Green)
      Physical Characteristics
      ConstructionExtruded aluminum alloy
      Color
      ColorBlue & Silver
      Dimensions
      Dimensions137 x 102.8 x 49.4 (WxDxH) (mm)
      Environment
      Operating Temperature-20°C ~ 50°C with air flow
      Humidity10% ~ 95%, non-condensing

    • Ordering Info.

      Item No. Description
      ITG-100AI-E1/8GB/S-R10Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 8GB DDR3L pre-installed memory, VGA, M.2, COM, 9-36V DC, Mustang-MPCIE-MX2 and RoHS

    • Package Contents

      • 1x 36w Adapter

      • 1x Power Cable

      • 1x Power Cord

      • 1 x Screw kit

      • 1 x Din-rail mounting bracket

      • 1 x RJ-45 to DB-9 COM port cable
