End of Life Notice
* Effective Date: 2021/06/15

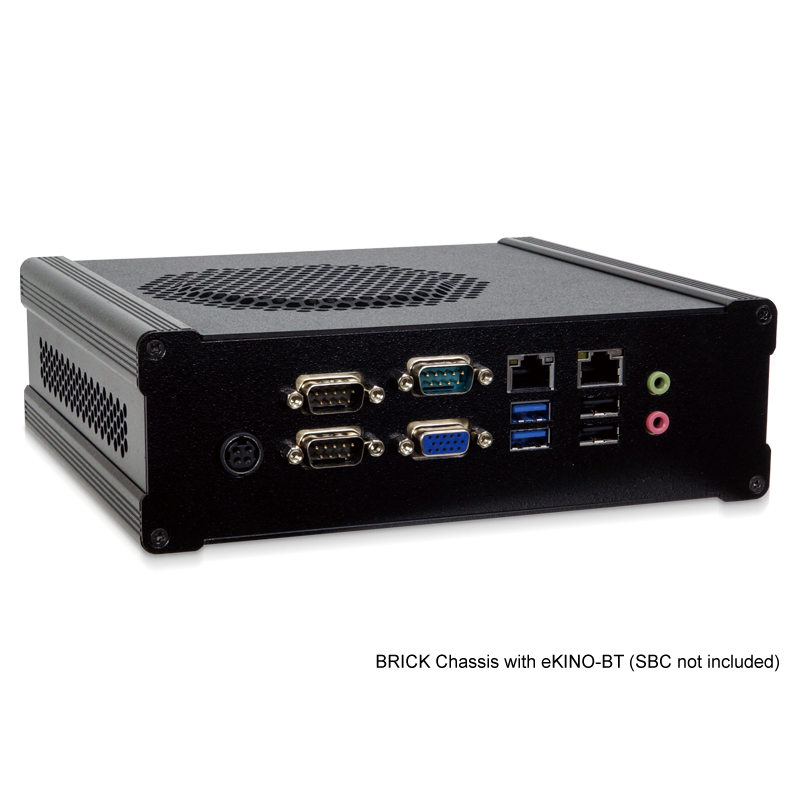

» Designed for Mini-ITX SBCs with DC input
» Flexible SBC compatibility
» One 2.5” hard drive capacity
» Cost-effective, RoHS compliant design
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Refer to KINO Series |
| I/O Interface | |
| I/O Openings | Reserved IO window for COM port expansion |
| I/O Ports | Refer to SBCs |
| Expansion Slots | |
| Expansion Slots | Refer to SBCs |
| System | |
| Cooling method / System Fan | Refer to SBCs |
| Drive Bays | 1 x 2.5” HDD bay |
| Indicator&Buttons | |
| Buttons | Power switch with LED |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 203 x 178 x 64 mm |
| Weight | |
| Weight | 1.25kg/1.5kg |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
Ordering Information
| BRICK-tKINO-ULT3-R10 | Embedded chassis for tKINO-ULT3 SBC, with IO bracket ,power switch, mat black and RoHS |
|---|---|
| BRICK-tKINO-BW-R10 | Embedded chassis for tKINO-BW SBC, with IO bracket ,power switch, mat black and RoHS |
| BRICK-tKINO-AL-R10 | Embedded chassis for tKINO-AL SBC, with IO bracket ,power switch, mat black and RoHS |
| BRICK-eKINO-BT-R10 | Embedded chassis for eKINO-BT SBC, with IO bracket ,power switch, mat black and RoHS |
| BRICK-KINO-DBT-R10 | Embedded chassis for KINO-DBT SBC, with IO bracket ,power switch, mat black and RoHS |
| BRICK-KINO-DAL-R10 | Embedded chassis for KINO-DAL SBC, with IO bracket ,power switch, mat black and RoHS |
Package Contents
| Package Content |
|
|---|
