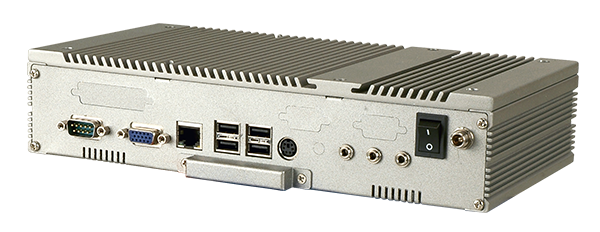

EBC-2100

Embedded C EBC-2100 hassis for EPIC NANO Series

End of Life

End of Life Notice

* Effective Date: 2021/09/01

» Fanless system with AMD LX-800
» Complete I/O interfaces, including LAN, COM, four USB
» Single 12V DC power input, AT mode only
» DDR support up to 1GB

Hardware Spec.

Form factor
SBC Form Factor Refer to SBC
SBC Size (mm): EPIC (165 x 115)
I/O Interface
I/O Ports 1 x PS/2
4 x USB2.0
1+2 RS-232
1 X LPT (optional)
1 x Realtek 8100C
3 x Audio jack (optional)
Expansion Slots
Expansion Slots 1 x PCI-104
System
Cooling method / System Fan 40 x 40 x 10 (optional)
Drive Bays 1 x 2.5” SATA HDD drive bay
1 x CF Card/CFast
Physical Characteristics
Construction Aluminum alloy with heavy duty metal
Color
Color Cool gray
Dimensions
Dimensions 262 x 134 x 56
Weight
Weight 1 kg/3 kg
Environment
Operating Temperature 0°C ~ 50°C

Ordering Information

EBC-2100-R41 Embedded chassis for NANO-8522/LX,compatible with 2.5" SATA hard drive,60W power adapter with ERP and PSE certificates,sliver,RoHS

Package Contents

Package Content
  • 1 x 12V 60W power adapter

  • 1 x Power cord

  • 1 x Screw set

  • 1 x Wall mount kit

  • 1 x QIG
