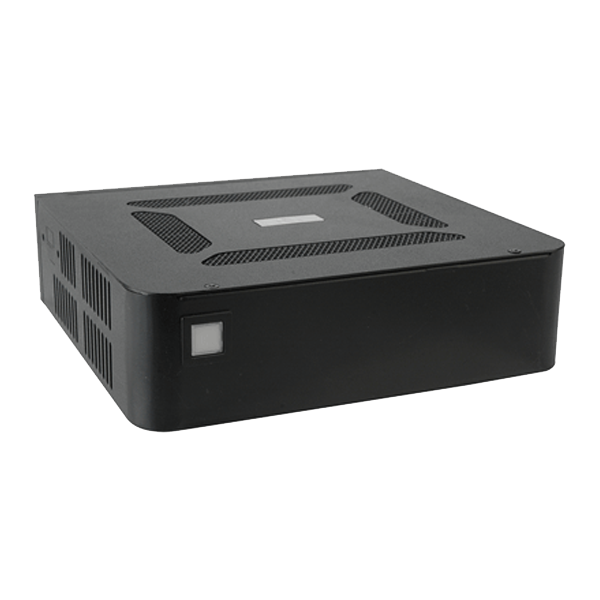

EBC-3220

Compact Embedded Chassis for IEI Single Voltage Mini-ITX SBC

» Designs for Mini-ITX SBC with single voltage input
» Space critical application
» One 2.5” hard drive capacity
» Cost-effective, RoHS compliant design

Hardware Spec.

Form factor
SBC Form Factor Refer to KINO Series
SBC Size: Mini-ITX (170mm x 170mm)
System
Cooling method / System Fan 40 x 40 x 10 (optional)
Drive Bays 1 x 2.5” HDD bracket
Indicator&Buttons
Buttons Power switch
Physical Characteristics
Construction Desktop, wall mount, VESA mount
Color
Color Black
Dimensions
Dimensions 190 x 180 x 55
Weight
Weight 1 kg/2 kg
Environment
Operating Temperature -10°C ~ 50°C with air flow*
(*Ambient air speed follows IEC-68-2-2 standard)

Ordering Information

EBC-3220-R11 Mini-ITX embedded chassis, for DC input model only, with one 2.5" hdd,w/o power adapter,Black,RoHS

Package Contents

Package Content
  • 1 x QIG

  • 1 x Wall mount bracket kit

  • 1 x Screw set
