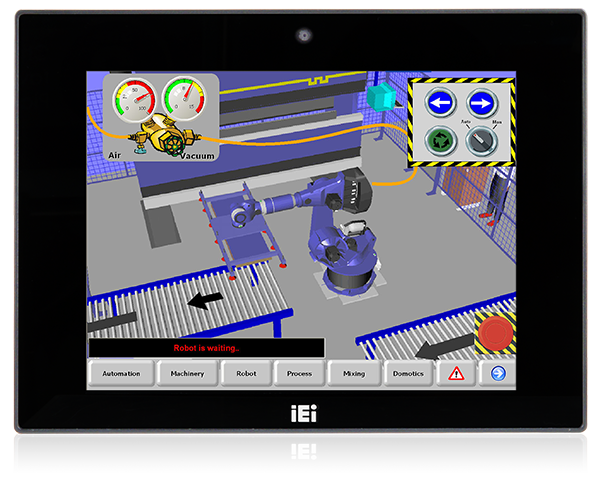

AFL3-08A-BT

Intel® Celeron® J1900 (Dual Core, 2.0 GHz)

» 8.4” light industrial interactive panel PC
» 9 V ~ 30 V wide range DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» IP64 compliant front panel
» IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Hardware Spec.

System
CPU Intel® Celeron® J1900 (quad core, 2.0 GHz)
Memory Max. One 204-pin 2 GB 1333MHz single-channel, 2GB
DDR3L SDRAM pre-installed (system max. 8GB)
Storage mSATA
I/O Interface
Ethernet 2 x PCIe GbE by RTL8111E controller
Audio ALC892
Power
Power consumption 12V@2A(Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
Power Requirement 9 V ~ 30 V
Environment
Operating Temperature -10°C~50°C
Safety & EMC CE/FCC
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C~60°C
Dimensions
Dimensions 233 x 175 x 50
Weight
Weight 0.8/2.44
LCD
Size 8.4”
Resolution 800 x 600 (4:3)
Brightness (cd/m2) 450
Contrast Ratio 600:1
LCD Color 16.2M
Pixel Pitch (mm) 0.213 (H) x 0.213 (V)
Viewing Angle (H-V) 160º / 140º
Touch
Touch Screen 5-wire resistive with RS-232 interface (anti-glare coating)
Touch Controller EETI EXC3160
I/O Interface
I/O Interface 1 x RS-232 ((RJ45 connector))
1 x RS-422/485 ((DB-9 connector))
2 x USB 2.0
2 x USB 3.2 Gen1x1
1 x LAN (Gbe)
1 x DC Input Jack (9-30V Lockable)
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x Audio ((line-out))

Ordering Information

AFL3-08A-BT-J1/R/2G-R14 8.4”500 cd/m² SVGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 2GB DDR3L RAM , with AG, R14

Package Contents

Package Content
  • 2 x Setting kit

  • 6 x Round head machine screw

  • 4 x Pan head machine screw

  • 2 x Fix holder

  • 2 x Power cord

  • 1 x Power adapter

  • 1 x Touch pen
