DP-DVI

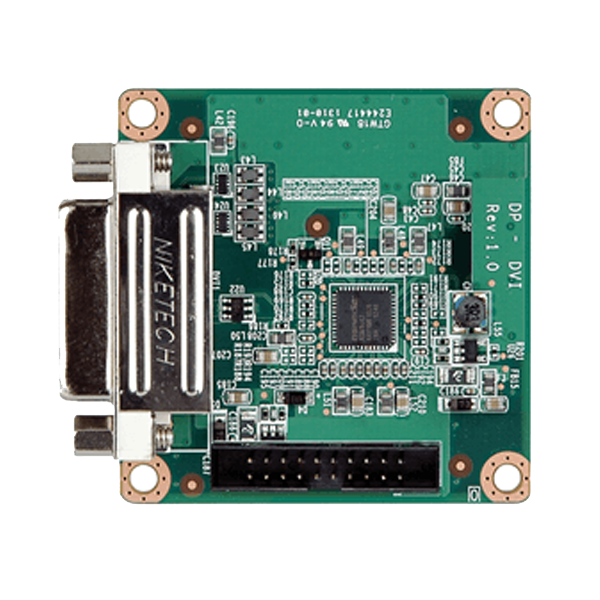

DisplayPort to DVI Converter Board (for IEI iDP Connector)

  • Overview

    ● DisplayPort to DVI output
    ● Support up to 1920x1200 resolution
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm)50 X 50
      I/O Interface
      Display Output1 x DVI-D
      Environment
      Operating Temperature-10°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      DP-DVI-R10 DisplayPort to DVI-D converter board (For iEi IDP connector)
