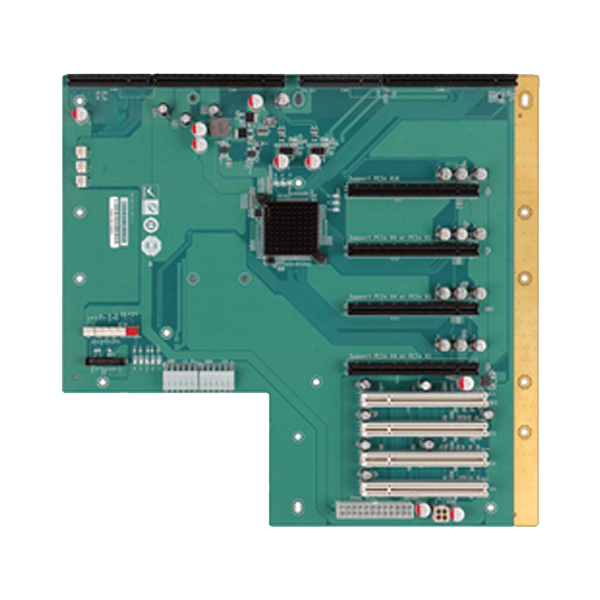

9-slot PICMG 1.3 backplane, one PCIe x16 with x16 slot, 3 PCIe x4 with x16 slots, four PCI slots RoHS

End of Life

End of Life Notice

* Effective Date: 2020/12/31

Hardware Spec.

Physical Characteristics
Mounting RACK-3000G
Dimensions (LxWxH) (mm) 191.8 X 311.15
I/O Interface
I/O Interface 4 x Internal USB 2.0 :by Pin Header
Expansion 1 x PCIe x16
3 x PCIe x4
4 x PCI Slot
Power Supply 24+4-pin ATX

Ordering Information

RACK-360GW-R22 4U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
RACK-360GB-R22 4U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
RACK-305GW-R22 4U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
RACK-305GB-R22 4U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
RACK-3000GW-R21 4U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
RACK-3000GB-R21 4U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
PXE-9S2-R10 9-Slot PICMG 1.3 Backplane, 1 PCIe x16 w/ x16 slots, 3 PCIe x4 w/ x16 slots, 4 PCI, RoHS (Mounting holes compatible with PCI-14S)
