NANO-HM650

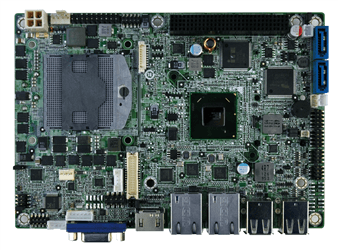

EPIC SBC Supports Socket G2 for 2nd Generation Intel® Core™ i7/i5/i3 and Celeron® CPU

End of Life

End of Life Notice

* Effective Date: 2019/01/31

» EPIC SBC with Socket G2 for Intel® 2nd generation Core™ i7/i5/i3 and Celeron® processor
» VGA/24-bit dual-channel LVDS/HDMI for dual display support
» 1066/1333HMz DDR3 SDRAM supported (system max. 8 GB)
» Supports three COM, eight USB 2.0, two SATA 6Gb/s, PCI-104 and audio
» TPM V1.2 hardware security function supported by TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display
Display Dual display supported
VGA (up to 2048x1536@75Hz)
HDMI (up to 1920x1200@60Hz)
18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -10°C ~ 60°C
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini card slot
1 x PCI-104 slot (PCI signal)
Form factor
Form factor EPIC
I/O Interface
Audio Realtek ALC662 HD Audio codec
Digital I/O 8-bit digital I/O (4-bit input / 4-bit output)
Ethernet Dual LAN: Realtek RTL8111E PCIe GbE
controller with ASF 2.0 support
I/O Interface
I/O Interface 4 x USB 2.0
4 x Internal USB 2.0
2 x Internal RS-232
1 x Internal RS-422/485
Power
Power consumption 12V@4.85A (2.6GHz Intel® Core i5-2540M with 1333 MHz 4 GB DDR3 memory)
Storage
Storage 2 x SATA 6Gb/s with 5V SATA power connector
System
Chipset Intel® HM65
CPU Socket Socket G2 for 2nd generation Intel® Core™ i7/i5/i3 and Celeron® mobile processor
Memory Max. One 204-pin 1066/1333 MHz DDR3 SDRAM SO-DIMM slot supports up to 8 GB
Watchdog Timer
Watchdog Timer Software programmable supports 1~255 sec. system reset

Ordering Information

NANO-HM650-R11 EPIC SBC supports Socket G2 supports Intel® mobile Core™ i7/i5/i3 CPU, VGA/HDMI, Dual PCIe GbE, USB2.0, Mini PCIe, SATAIII , PCI-104 and Audio,RoHS

Package Contents

Package Content
  • 1 x NANO-HM650 single board computer

  • 1 x Audio cable

  • 1 x Mini jumper pack

  • 1 x Power cable

  • 2 x RS-232 cable

  • 1 x QIG (Quick Installation Guide)

  • 2 x SATA with power cable
